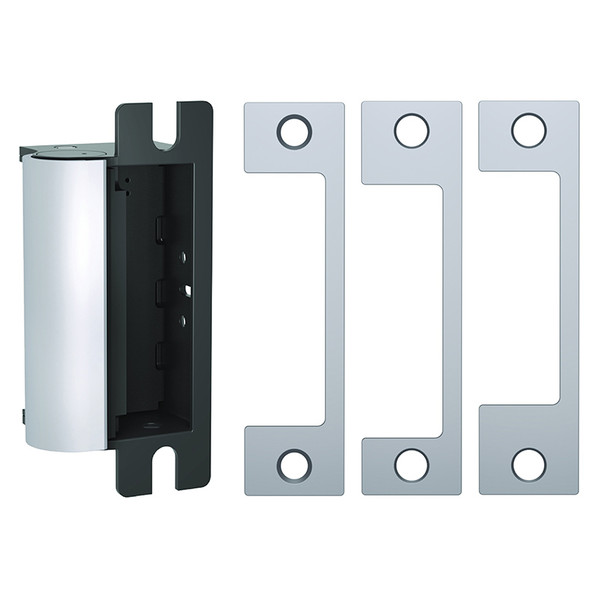

1006CAS-630 HES Electric Strike

The 1006CS Smart Strike includes a 1006 electric strike body and SMART Pac III plus faceplates and brackets that can provide the same function as any of the following options: A Option, AD Option, AM Option, N Option, ND Option, NM Option, T Option, TD Option.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC* continuous duty
• .25 Amps at 24VDC* continuous duty
• *Note: DC must be well filtered with ripple less than 1 volt RMS.

Standard Features

• Stainless steel construction
• Tamper resistant
• Static strength 2,500 lbs. (fail secure)
• Dynamic strength 350 ft-lbs. (fail secure)
• Endurance 1,000,000 cycles
• Fail secure (standard)
• Dual voltage 12 or 24VDC continuous duty
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1" deadbolt
• Plug-in connector
• Full keeper shims for horizontal adjustment
• Trim enhancer
• Five year limited warranty

Optional Features

• Fail Safe
• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor
• 27 interchangeable faceplate options (monitor switches may not work with all faceplate options)

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 629 - Bright stainless steel
• BLK - Black
• *Complete Pacs are only available in the 630 finish
