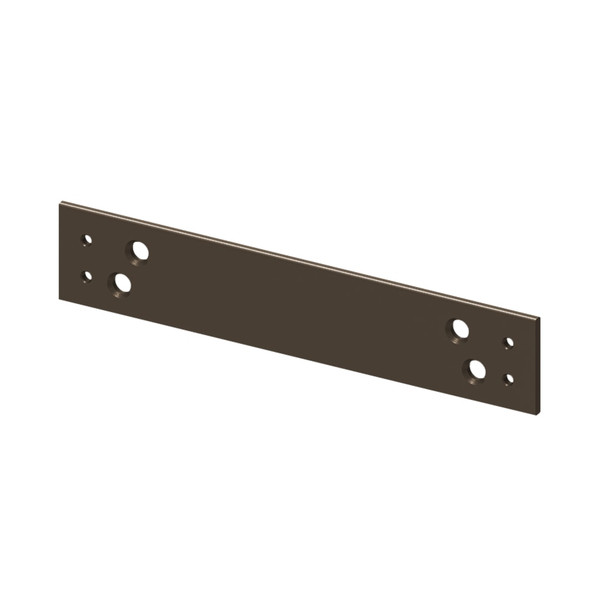

1260-18QF DKBRZ LCN Door Closer Mounting Plates
The LCN 1260 Series is a light to medium duty Grade 1 cast iron closer designed to fit into the most common commercial footprint. The 1260 is adjustable from spring sizes 1 to 5 and offers a complete line of regular and extra duty arms. The 1260 features a full compliment bearing, 1-3/8 In. diameter piston and a 5/8 In. diameter single heat treated pinion journal. The non-handed design along with the peel-n-stick template with a 3/4 In. x 9-1/16 In. mounting hole pattern make for an easy installation.
- Standard 1260 series closer shipped with regular arm, a shaft cover, and self reaming and tapping screws. See 1260 Series catalog pages 8-9 for options
- Non-sized (1-5) cylinder is adjustable for interior doors to 4’6” and exterior doors to 3’6”
- Closer mounts hinge side, top jamb and parallel arm on either right or left swinging doors
- Mounts to most common commercial footprint (3/4” x 9 1/16”)
- Closer meets ADA requirements. See 1260 Series catalog page 10
- Optional Quick Fix™ bracket kit
- Standard or optional custom powder coat finish
- Optional SRI primer for installations in corrosive conditions
- Optional Slim Line cover
