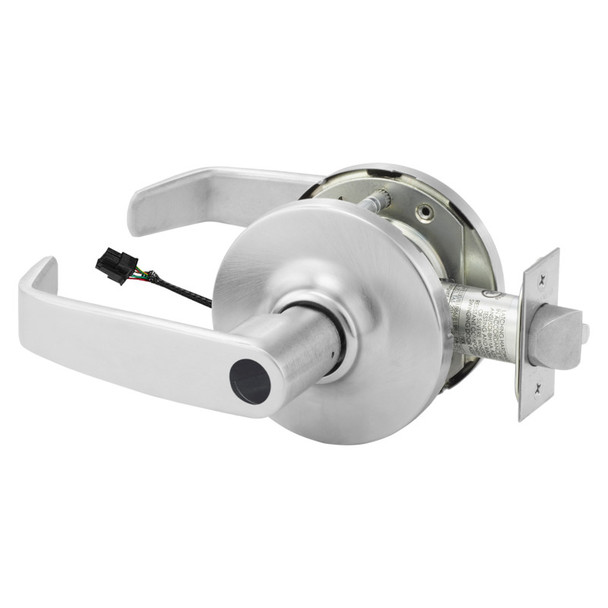

28LC-10G70-24V GL 26D Sargent Electric Cylindrical Lock

The Sargent 10 Line is a heavy duty cylindrical key-in-lever handle lockset exceeds by five times the ANSI 156.2 Series 4000 Grade 1 standards. At over 4 million cycles, the 10 Line beats the competitor by 30%. As for abusive force, this lock endures more than two times the standard without allowing entry. The 10 line trim is designed to conform to national and state fire and handicapped requirements.

• 10G70: Power off, unlocks outside lever
• 10G71: Power off, locks outside lever
• Deadlocking latch
• Key retracts latch
• Inside lever always allows egress
• Voltage requirements: 12VDC or 24VDC Regulated; always specify voltage
• 250mA at 24VDC or 500mA at 12VDC
• Provided with ElectroLynx® 8-Pin Connector
