Description

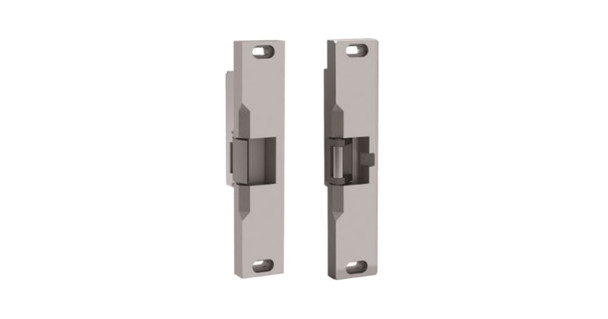

310-4S 612
The 310 Series is a 3 hour fire-rated, industrial grade electric strike designed for extreme heavy duty applications. The all stainless steel construction of this device makes it ideal for high abuse applications that would disable other electric strikes.
- UL 10C, 3 hour fire-rated (fail secure only)
- CAN4-S104 (ULC-S104) fire door conformant
- UL1034, burglary-resistant listed
- UL 294 (6th Edition) listed
- ANSI/BHMA A156.31, Grade 1
- NFPA-252 fire door conformant
- ASTM-E152 fire door conformant
- .51 Amps @ 12VDC continuous duty
- .25 Amps @ 24VDC continuous duty
- Integrated shim for quick customization of faceplate thickness (1/2" to 3/4")
- Tamper resistant, heavy-duty construction
- Constructed entirely of stainless steel for strength and corrosion resistance
- Static strength 1,500 lbs.
- Dynamic strength 70 ft-lbs.
- Endurance rating 500,000 cycles
- Integrated ramps for better deadlatch handling
- Set screws for horizontal lockdown
- In-frame horizontal adjustability
- Wider faceplate (1-3/4”) for greater versatility
- Non-handed
- Fail Secure (standard)
- Plug-in connector
- Five year limited warranty
- Fail Safe
- LCBMA - Latchbolt & Locking Cam Monitor with Auxiliary Switch
