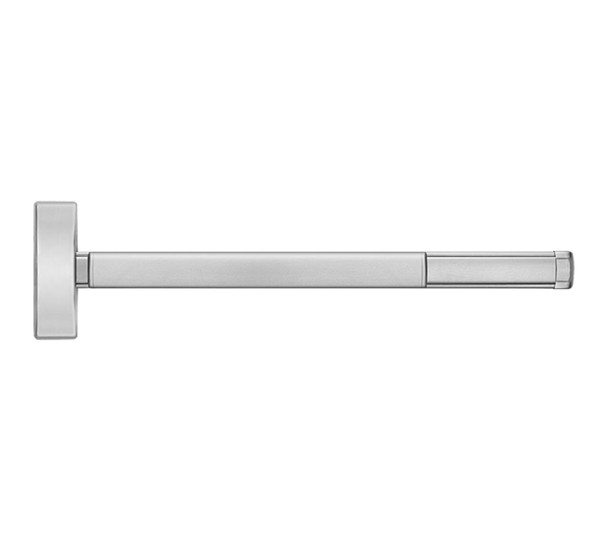

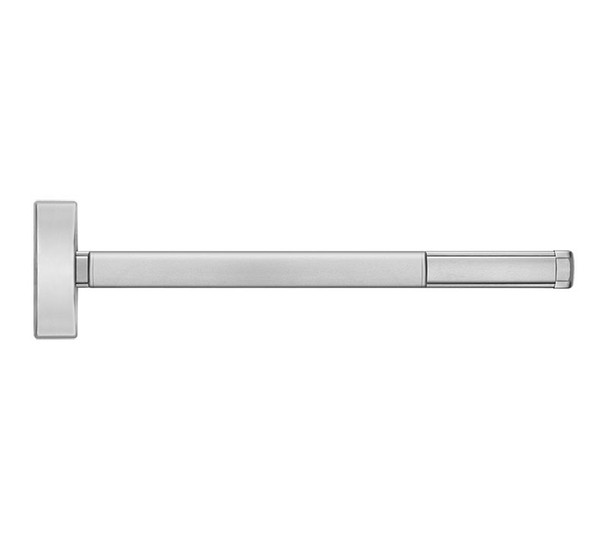

5214CD 695 48 Precision Hardware Inc (PHI) Exit Device

The Reliant 5000 Series is the Exit Device of choice when an economical and reliable exit device is required. All Reliant 5000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1. The Reliant Series is available in durable powder coat finishes with a variety of trim styles and functions. The chassis is constructed of stainless steel and covers the standard type 161 door preparation.

• ACTIVE CASE & TRIM - Covers ANSI A115.2 (Type 161) or ANSI A115.18 cylinder lock preparation. Active case through bolts in ANSI A115.18 preparation without additional machining.
• FUNCTIONS - Universal Exit Device, add Trim for the desired function.
• ACTIVE CASE COVER, LATCH COVERS & ENDCAP - High Impact Thermoplastic.
• ACTIVE CASE & TOUCHBAR SUB-ASSEMBLY - Zinc Dichromate plated Heavy Wrought Steel.
• TOUCHBAR ASSEMBLY - Powder Coated Heavy Wrought Steel.
• VERTICAL RODS - Powder Coated Steel.
• TOUCHBAR HEIGHT - 40-5/16" from floor standard. Specify required height if other than standard.
• REVERSIBLE - Reversible for all functions and trims. Standard packaging RHRB. UL LISTED - Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 3. Conforms to UL10C and UBC 7-2.
• ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
• FINISHES - 689 Aluminum Powder Coat, 695 Dark Bronze Powder Coat.
• LESS BOTTOM ROD (LBR) OPTION - Specify suffix “LBR” (e.g. 5200LBR).  Fire Rated Devices include FB277 Fire Bolt Assembly
