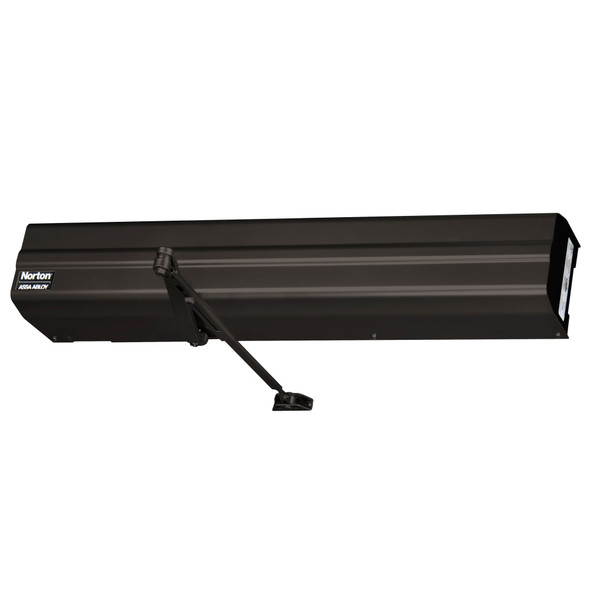

5910-RF1 690 Norton Door Operators

The Norton 5900 Series is a full-featured, extremely quiet, low energy door operator designed for moderate to high traffic doors. This cost-effective operator is available for either push- or pull-side mounting and is ideal for any application designed to meet the Americans with Disabilities Act (A.D.A). The 5900 is simple to install and set up. "One touchî programming combined with the operators built-in ability to calibrate door mass, offers our customers a smart, dependable solution. Power Assist, Obstruction Detection, Motor Start Delay and Stop on Stall are just a few features that set this electromechanical operator apart from the competition. It is ideal for senior housing/assisted living facilities, hospitals, office buildings, colleges or universities, places of worship, convention centers, etc.

• Door Control (interior) (exterior) closing force shall be adjustable to ensure adequate closing control.
• Door Operator shall simulate conventional door closer opening and closing forces unless the power operator motor is activated.
• Door Operator shall have electronic backcheck to cushion the door speed if door is opened violently.
• [(Door Operator shall be AUTOMATICALLY ACTIVATED by either a slight push or pull in the direction of opening swing - Push and Go.)
• (Door Operator shall be SELECTIVELY ACTIVATED by external initiating device, i.e. wall switch, etc.)
• (Door Operator shall be both AUTOMATICALLY ACTIVATED and SELECTIVELY ACTIVATED.)]
• Unit shall have delay switches for motor activation, electric lock interfacing, and hold open time.
• Units shall interface with latch retraction exit devices or similar products and have 12VDC @ .5A, 24VDC @ .25A, 24VDC @ .4A output for connection of electric strike, lock, radio frequency receiver, etc.
• Unit shall have a three-position Selector Mode Switch that will permit the unit to be switched “ON” to monitor for function inputs, switch to “H/O” for infinite hold open function or switched “OFF” which will disable function inputs allowing unit to be used as a manual door closer.
• Unit shall be U.L. Listed for automatic closing door.
• The Unit shall be adjustable to provide compliance with the requirements of the Americans with Disabilities Act (ADA).
• Unit shall be certified by BHMA to meet A156.19 requirements.
• Unit shall meet UL325, UL10C standards.
