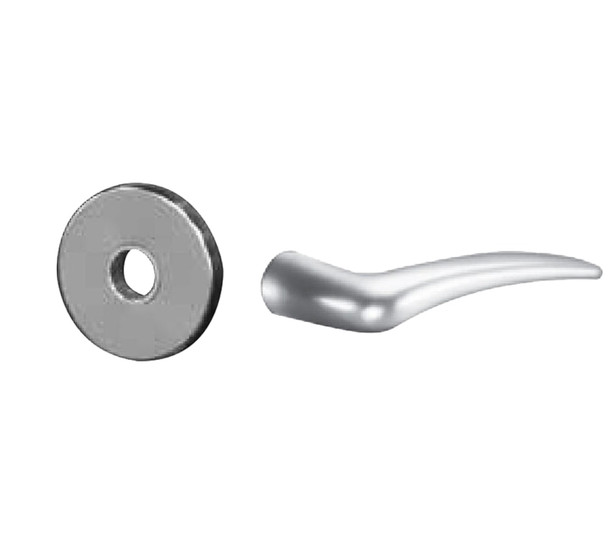

60-8271-12V LNA 26D LH Sargent Manufacturing Electric Mortise Lock

• For Doors 1-3⁄4" (44mm) thick standard. For doors over 1-3⁄4" (44mm), specify door thickness and panels (if any)
• Backset 2-3⁄4" (70mm) only
• Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
• Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
• Springs High carbon steel
• Hubs for Knobs Sintered iron copper infiltrated
• Hubs for Levers Cold forged steel
• Hubs for Institutional Stainless steel (3- prefix)
• Latchbolt Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
• Auxiliary Deadlatch Stainless steel, non-handed
• Deadbolt One-piece hardened stainless steel, with 1" (25mm) projection
• Hand Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
• Strike Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed (strike box optional)
• Keys Two, nickel silver (control key or emergency key must be ordered when required)
• Cylinder Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). Available with SARGENT Signature, V-10, XC and KESO Security Systems
• Masterkeying Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
• Finishes 3, 4, 9, 10, 10B, 10BL,15, 20D, 26, 26D, 32, 32D Special finishes are available. (Contact factory for details)
• Classroom Security 38, 39, 40, 41 Functions (All mortise trim designs available except KE/LE 3 & 4 and PT trim or FE trim with 41 function)
• Stile 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
• Door Prep ANSI A115.1 modified per template (see template for 7800/8200 lockbody & trim)
• Warranty 10 year limited warranty, 2 year limited warranty on electrified locks
