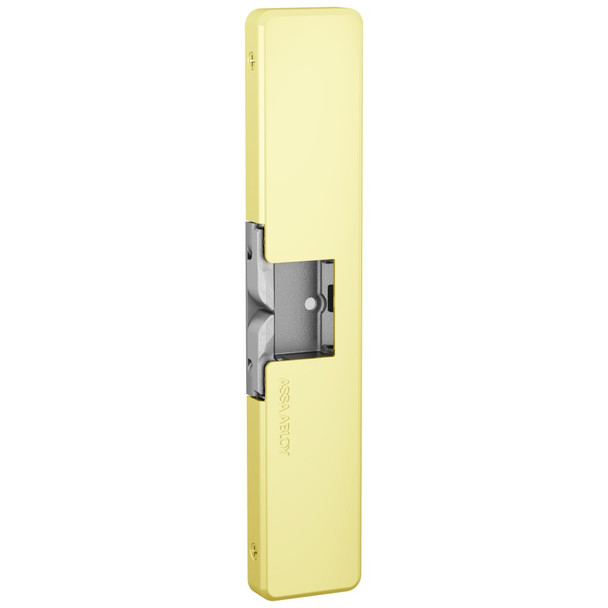

9400-605-LBM HES Electric Strike

The 9400 series is a slim-line, surface mounted electric strike designed to accommodate rim exit devices with a 1/2" Pullman latch. All components are completely encased within its 1/2" thick stainless steel housing, so no cutting on the frame is required for installation. Simply place the electric strike on the surface of the frame, align it with the exit latchbolt, and install.

Frame application

• Metal
• Wood

Electrical

• .45 Amps at 12VDC continuous duty
• .25 Amps at 24VDC continuous duty

Standard Features:

• Installs in metal and wood frames
• Completely surface mounted
• Decorative cover for sleek new look
• Stainless steel construction
• Tamper resistant
• Static strength 1,500 lbs.
• Dynamic strength 70 ft-lbs.
• Endurance 500,000 cycles
• 1/8" + 1/16" spacer plate included
• Field selectable fail safe/fail secure
• Dual voltage 12 or 24 VDC
• Horizontal adjustment
• Non-handed
• Internally mounted solenoid
• Accommodates up to 1/2" Pullman latch
• Five year limited warranty

Optional Features:

• LBM - Latchbolt monitor
• LBSM - Latchbolt strike monitor

Finishes

• 630 - Satin stainless steel
• 605 - Bright brass
• 606 - Satin brass
• 612 - Satin bronze
• 613 - Bronze toned
• 613E - Dark oxidized satin bronze
• 629 - Bright stainless steel
