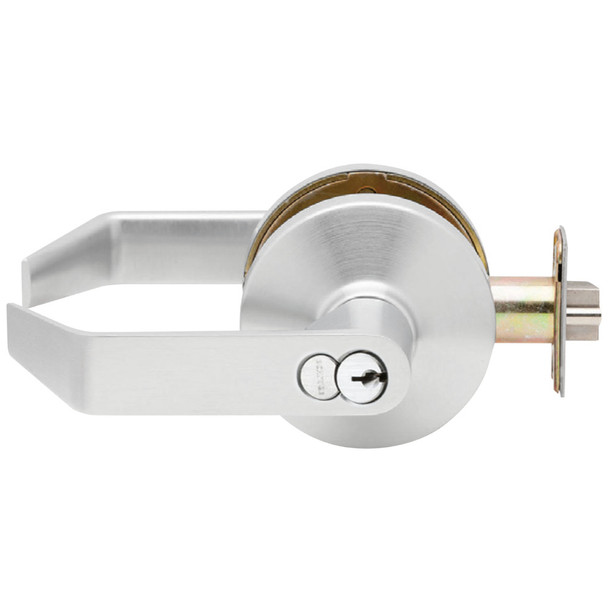

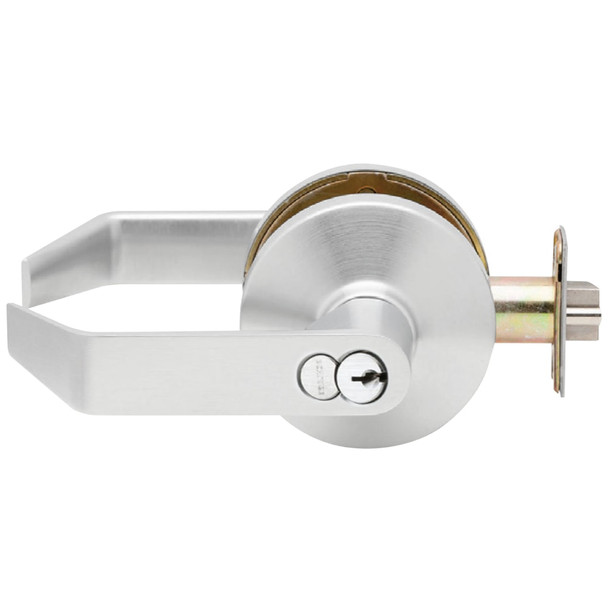

B561HD D 626 Falcon Cylindrical Lock

When you need a tough, reliable lock for a government/military, retail, industrial or multi-family project, you need a Falcon B Series lock. Our full line of Grade 2 locksets are a perfect replacement for existing locks, or a smart specification in new construction. With upgraded finishes, these locks deliver style as well as strength. Falcon B Series locks feature an interchangeable core that can be removed for quick, easy re-keying, and are compatible with SFIC products from other manufacturers. Most importantly, they’re backed by one of the best names in the business.

• Door Thickness: 1 3/8” to 2” standard.
• Backset: 2 3/4” standard. 2 3/8” also available.
• Mechanism: Parts constructed of brass or cold formed steel, zinc plated and dichromated for rust resistance. Springs are stainless steel.
• Attachment: Lock chassis secured to door by two screws which pass through a steel rose insert inside and thread directly into the outer rose mounting assembly.
• Handing: Locks are non-handed.
• Cylinders: Drilled with 6-pin chambers, pinned in 5. Pinning in 6 chambers available when specified, at no cost. Cylinder assemblies removable to rekey. Also available with 6 or 7-pin interchangeable core cylinders. Cylinder housings and plugs machined from solid brass. Springs are phosphor bronze. Two nickel silver keys furnished standard.
• Competitor Cylinders: The B Series accepts these standard 6-pin cylinders: Assa, Kaba, Lori, Medeco, Primus and Schlage.
• Keyways: “G” keyway standard on standard cylinders. “A” keyway standard on I/C core cylinders. Also available with some optional keyways.
• Trim: Roses are 3 1/2” diameter, heavy wrought brass or bronze, installed over steel rose inserts which are through-bolted through door. Levers are pressure cast zinc (solid levers-no inserts) material finished to match mating parts.
• Latches: 1/2” bolt projection. UL (3-hour, A Label) listed. Latches have self-adjusting fronts to accommodate beveled or flat doors. 2 3/8” backset with 2 1/4” x 1” latchfaces, 2 3/4” backset with 2 1/4” x 1 1/8” latchfaces. Deadlocking latches have a solid round bar stock DL bar preventing latch jamming and/or lock outs.
• Strikes: 4 7/8” x 1 1/4” ANSI strike with curved lip to meet ANSI A115.2 door frame preparation standard. Consult Options and Accessories section for other available strike size and configurations.
• Screws: Furnished with combination screws for use in wood or metal doors and frames.
• ANSI/BHMA: Exceeds ANSI/BHMA A156.2, Series 4000, Grade 2.
• UL: 3-hour, A Label.

Falcon Finishes Chart
