Description
Camden Door Controls 4000 Series of push switches are heavy duty pushbuttons, specially designed and manufactured to meet the stringent demands of exit controls. Buttons are available in red, 1 5/8”diameter. They are supplied with a 1/4” thick brushed aluminum plate in 2 3/4” widths. No set screws are required, due to the bayonet interlocking of the modular assembly. Buttons are free spinning, for additional protection against vandalism. The switches are UL/CSA approved, rated at 10 amps @ 30 VDC. The design of the Camden Push Button is modular, so that the contact block switches can be stacked to control up to six distinct functions simultaneously. They can be configured for either spring return (momentary), push / pull (maintained), or push/turn to release (maintained) operation.
Features
- LARGE EASY TO OPERATE RED BUTTON
- 1 5/8” DIAMETER
- MEETS ADA REQUIREMENTS
- MOUNTED ON HEAVY 1/4” THICK ALUMINUM PLATE
- SINGLE GANG & 1 3/4” WIDTH PLATES AVAILABLE
- INDOOR OR OUTDOOR APPLICATIONS
- DOOR FRAME, WALL & PEDESTAL MOUNTINGS • SPRING RETURN, PUSH/PULL, OR PUSH/ TURN OPERATION
- LARGE ENGRAVED SYMBOLS OR WORDS
- VANDAL & TAMPER RESISTANT
- FREE SPINNING BUTTON CANNOT BE UNSCREWED
- TAMPER PROOF SCREWS PROVIDED
- STACKABLE CONTACTS CAN CONTROL 6 DISTINCT FUNCTIONS
- UL/CSA APPROVED SWITCHES RATED 10 AMPS @ 30V DC
- COLOR CODED 18 AWG SPADE CONNECTIONS
- BRUSHED ALUMINUM FINISH
- FAST & EASY TO INSTALL
Application
Camden Push Switches are ideal for high traffic areas, such as store and building front entrances, and exits. They can be surface, flush, or mullion (narrow stile) mounted. Camden Push Switches are designed to control overhead doors, electric locks, electro-magnetic locks, electric strikes, automatic doors, and handicap operators. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and other applications. The switches are made for high frequency usage, in an indoor or outdoor environment. Camden Push Switches are versatile, and are supplied in various configurations to suit commercial, industrial and residential applications

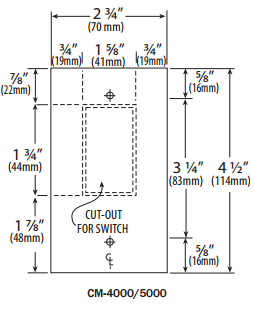

Specifications
The push switch(es) to be used throughout the site/complex shall be Camden Door Controls CM-4000 Series Push Switches. The button shall be designed to be easy to activate, 1 5/8” in diameter. The faceplate shall be constructed of 1/4” thick aluminum, and shall be supplied with stainless steel Torx or snake eye security screws. The push button shall be free spinning for additional protection against vandalism. Rating for all electrical contacts, shall be a minimum of 10 amps @ 30 VDC. The switch used shall be a UL/CSA approved type, supplied with color coded spade leads. The switch assembly shall be modular, allowing for up to six distinct functions upon activation of the push button. The mounting shall employ a bayonet assembly, so that no set screws are required to secure the free spinning button.
Model Available: CM-4020-RE SPRING RETURN, N/O & N/C, MOMENTARY (ADA) Red Button, "EXIT" engraved in white
