Description

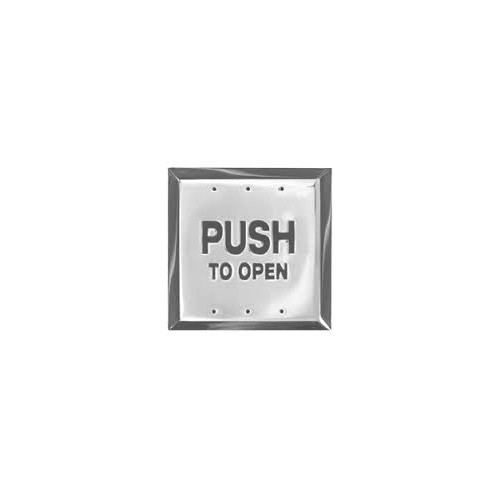

Camden Door Controls CM-45/46 Series all-active switches are heavy-duty, ADA-compliant door controls. The 4 1/2” square faceplates are stainless steel or aluminum, and the assemblies are designed for easy installation. Both series mount to standard single gang or double gang electrical boxes. CM-45 series is sold as a complete assembly, which is mounted to the in-wall box (or surface box) using stainless steel Allen screws and a hex key (included with the switch). Access to the mounting screws is through small holes in the front of the faceplate. This provides for tamper resistance, while maintaining an attractive overall appearance.
Application
Camden all-active switches are designed for areas where an easy-to-activate, high visibility switch is desired. Ideal for high-traffic areas, hospitals, wheelchair access, seniors’ residences, etc. They can be surface or flush mounted. Camden all-active switches are designed to control electric strikes, electromagnetic locks and automatic doors. They may also be used for shunting, bypassing alarms, request to exit, timed functions, and many other applications. The switches are made for high frequency usage, in both indoor and outdoor environments. Camden switches are versatile, and can be supplied in various configurations and finishes, to suit any commercial, industrial, or residential application.
Features
- 4 1/2” SQUARE PUSH PLATE SWITCH, CONCEALED SCREWS
- Stainless steel construction, ADA- compliant Door Control
- "Push to Open" black Graphic
- Mount to standard single gang, double gang electrical boxes and 4x4 boxes
- Alien screws and hex keys included
- Flush mount or surface mount
- 4 stud switch design and rubber dampers for quieter operation
- 3 years "Camden Tough" warranty with "2 for 1" replacement
- UL/CSA approved switch
Specifications
The switches to be used throughout the complex shall be Camden Door Controls CM-45, CM-46 or CM-46CB series all-active switches. The switches shall be easy-to-activate, ADA compliant, 4 1/2” square. Switches shall be all-active, whereby pressing any part of the faceplate will activate the device. Faceplates shall be constructed of stainless steel or aluminum. Switches shall use plastic spacers and rubber dampers for noise reduction. Switches shall be rated at a minimum of 15 amps @ 30V DC.
