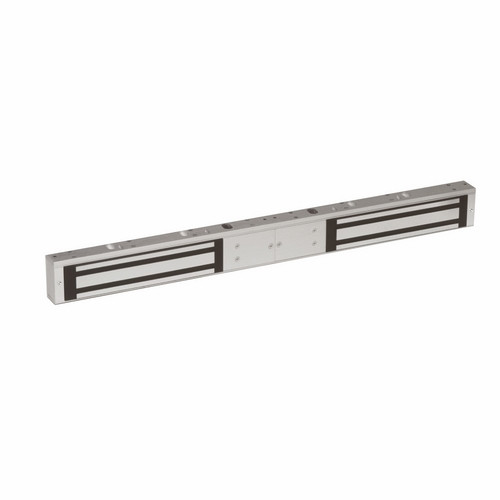

Camden CX-92S Double Door Magnetic Lock
Camden

Camden CX-92S Double Door Magnetic Lock


$337.11 - $365.11
SKU:
CX-92S
In Stock & Ready To Ship!
Current Stock:Only left:
Ask Questions

Description


Camden CX-92 Series double door magnetic locks offer the best performance and value.

Features

• 1200 and 600 lbs. models are UL and ULC listed
• Weather and vandal resistant constuction proven over thousands of installations
• Compatible with all access/egress systems
• Field selectable 12/24V DC operation
• On board MOV power surge protection prevents damage to mag lock
• A wide range of mounting brackets and spacers available
• Lifetime Warranty

Specifications

Voltage: 12/24V DC
Current Draw: 2 x 500mA@12V DC
2 x 250mA@24V DC
Temp Range: 5F to 122F (-15C to 50C)

Dimensions: CX-92S-06: 19 5/8" x 1 7/8" x 11/16"
(498m x 48mm x 17mm)
CX-92S-12: 21" x 2 7/8" x 1 7/8"
(533mm x 73mm x 48mm)
Armature Plate:
600LBS: 2 x 7 15/16" x 2 3/16" x 5/8"
2 x (202mm x 56mm x 16mm)
1200LBS: 2 x 7 15/16" x 3" x 5/8"
2 x (202mm x 76mm x 16mm)

Models Available

  • CX-92S-12: 1200 lbs. SURFACE MOUNT DOUBLE DOOR MAG LOCK - BASIC
  • CX-92S-06: 600 lbs. SURFACE MOUNT DOUBLE MAG LOCK - BASIC
