Description

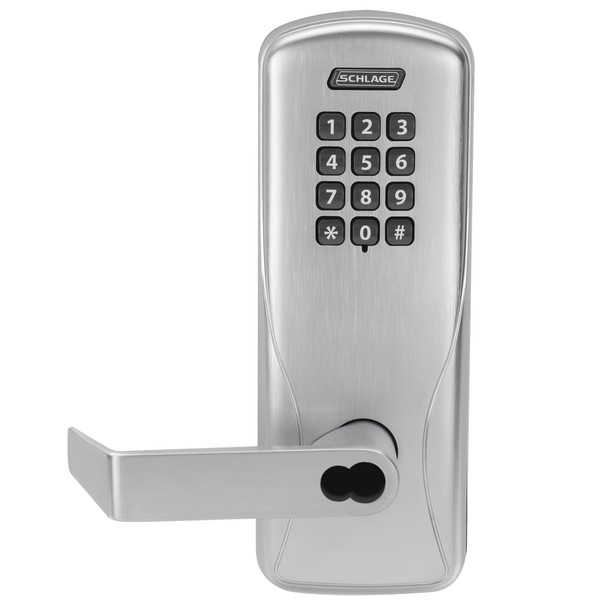

CO100MS70 KP RHO 626 JD CO6 Schlage Electronics Electric Mortise Lock
The CO Series is the ideal solution for customers seeking the added security and convenience of electronic access control without the cost or complexity of a fully networked system. The CO-100 is a standalone lock that is manually programmable. User rights for the CO-100 are stored on the lock. Unique PIN codes can be assigned to each user. This minimizes the number of mechanical keys issued which protects the integrity of your key system. PIN codes can be easily added or deleted at anytime, right at the door.
Reader options
- Proximity reader (125 kHz)
- Proximity reader with keypad
- Magnetic stripe reader in swipe style (triple track, field configurable)
- Magnetic stripe reader with keypad in swipe style
- Keypad only
User verification
- Capable of credential verification <1 second
- Up to 2,000 users/audits depending on access control software
Programming interface
- Schlage Utility Software (SUS) with compatible Android device transfers programming information from computer to lock using the SUS-A cable connection
- Schlage Express PC-based software or Software Alliances member solutions provide access control management for users, audits and locks
Additional
- Battery life - up to 2 years with 4 AA batteries
- Exterior Temp: -31° to 151°F (-35° to 66°C)
- Interior Temp: 32° to 120°F (0° to 49°C) (battery)
- Humidity: 0 - 100% non-condensing
Chassis
- CylindricalÂ
- Mortise
- Mortise deadbolt
- Exit trim
- Each offered with LED indicator or push button depending on lock function choice
Cylinder and keys
- Standard keyway: Schlage 6-pin Everest 29 S123 with two patented keys
- Classic and restricted keyways, master keying and grand master keying options
- Key-in-lever, FSIC, and SFIC cylinder options
- Less cylinder options to fit common Sargent®, Corbin Russwin®, Medeco®, Yale® and Falcon® cylinders
Functions
- 70 Classroom/Storeroom (cylindrical and mortise only)
- 50 Office (cylindrical and mortise only)
- 40 Privacy with programmable occupancy indication option
CO-Series Flipbook
