Description

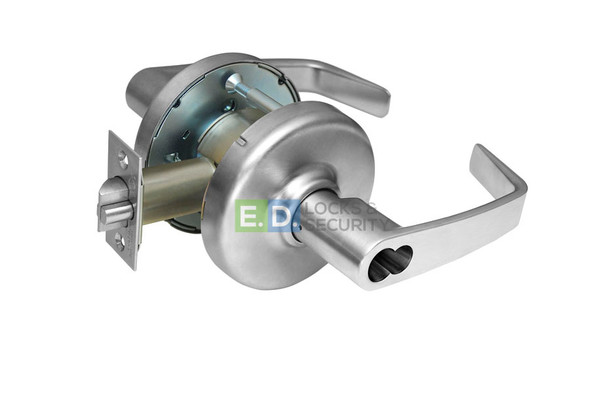

Corbin Russwin CL3300 Series CL3355 NZD Heavy Duty Classroom Lever Lock
The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
Vandal Resistance
Engineered to meet today’s increased security needs, the CL3300 series offers several advantages. All functions feature the Lever ReleaseTM design for vandal resistance, allowing the outside lever to rotate when in the locked position. All CL3300 series locksets, including the CL33900 series, are available with Corbin Russwin Pyramid patented security or high security cylinders, the most secure locking system available. Pyramid is especially recommended for installations that require superior protection against picking, drilling and other surreptitious entry. See the Pyramid catalog for additional information.
 | Key Advantages
|
Classroom Function
 |
|
Features
- Non-Handed
- Door Thickness: 1-3/4" (44mm) - 2" (51mm) standard.
- Lock Chassis: Steel, zinc dichromated for corrosion resistance.
- Backset: 2-3/4" (70mm) standard.
- Latchbolt: Stainless Steel, 1/2" (13mm) throw.
- Warranty: Seven-year limited.
- Auxiliary Latchbolt: Deadlocking latchbolt prevents manipulation when door is closed.
- Front: Wrought brass, bronze, or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm).
- Strike: Wrought brass, bronze, or stainless steel ANSI curved lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/4" (32mm) lip to center.
- Keys: Two nickel silver standard
- Cylinder: 6-pin L4 keyway, 0-bitted standard
Lever Design
- ANSI: Meets A156.2 Series 4000, Grade 1. Meets A117.1 Accessibility Code.
- Federal: Meets FF-H-106C.
- California State Reference Code: (Formerly Title 19, California State Fire Marshal Standard) All levers with returns comply; levers return to within 1/2" (13mm) of door face.
- C-UL US: All locks with 1/2" (13mm) throw latchbolt listed for A label and lesser class 4' x 10' single doors. All locks with 3/4" (19mm) throw latchbolt listed for A label and lesser class 8' x 10' pairs of doors. Letter F and UL symbol on latch front indicate listing.
