Description

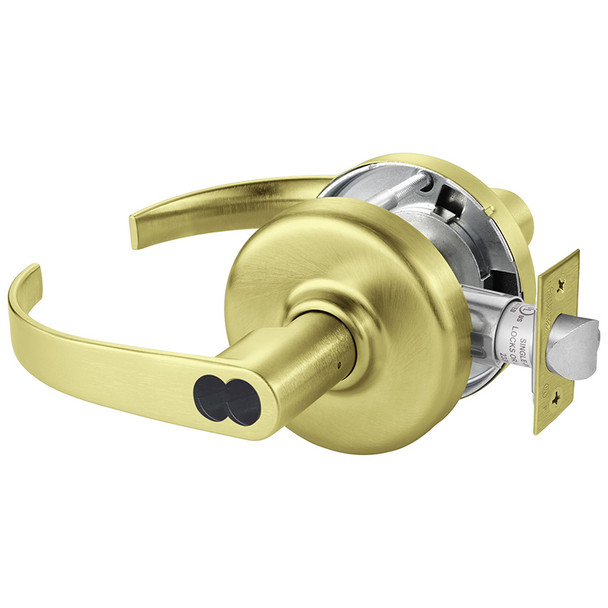

Corbin Russwin CL3555 PZD 606 CL6 Cylindrical Lock
The CL3300 series is a Grade 1 cylindrical lockset manufactured with the highest quality materials to ensure strength, durability and quiet operation. Available in all standard architectural finishes and four lever designs, the CL3300 series subtly complements any high-use commercial, industrial and institutional application.
- Independent return springs to prevent lever sag
- Through-bolted cylindrical chassis prevents rotation and ensures proper alignment
- ANSI Grade 1 certification
- Trim and keying compatible with other Corbin Russwin locksets
Features
- Handing — Non-handed.
- Door Thickness — 1-3/4" standard (fits doors 1-3/8" - 1-3/4")
- Backset — 2-3/4" standard. Optional: 2-3/8", 3-3/4" and 5".
- Lock Chassis — Steel, zinc dichromated for corrosion resistance.
- Front — Brass, Bronze or Stainless Steel. 2-1/4" x1-1/8" standard for 2-3/4", 3-3/4" and 5"backset. 2-1/4" x 1" standard for 2-3/8"backset. Accommodates flat doors and doors beveled 1/8" in 2". Optional: rounded corner fronts; 1" fronts.
- Latchbolt — Brass, chrome plated with 1/2" throw.
- Auxiliary Latchbolt — Deadlocking latchbolt prevents manipulation when door is closed.
- Strike — Wrought brass or stainless steel ANSI curved lip, 4-7/8" x 1-1/4" x 1-1/4" lip to centerstandard. Optional strikes, lip lengths and ANSI wrought strike box available.
- Cylinder — Brass, 6-pin, L4 keyway, 0-bitted standard. Optional Cylinders available.
