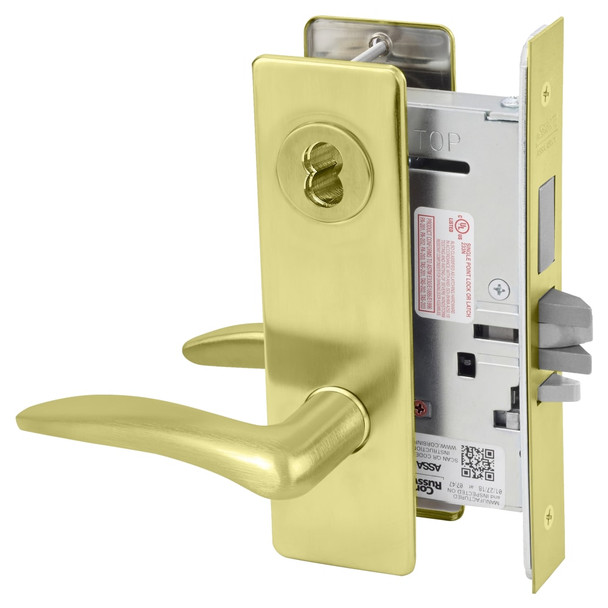

ML2000 Series Mortise Locks
Corbin Russwin ML2000 Series Overview
Grade 1 Mortise Locks
Quality
The ML2000 Series is a Grade 1 mortise lock designed to meet the rigors of high-traffic commercial, institutional, industrial and government applications. Constructed of heavy-gauge steel, the lockbody features our patented Quick Reversible latchbolt, and a 1" stainless steel deadbolt. A wide variety of trim designs and functions and a 10-year warranty lend to the ML2000’s versatility and reliability, making it the ideal choice for use in offices, schools, hospitals, hotels and other high-use applications.
Security
Further discourage intrusion and abuse with the ML2000VR (Vandal Resistant) series mortise lock. This lock features vandal-resistant stainless steel escutcheons with tapered edges and Torx® pin tamper resistant screws. When matched with Corbin Russwin patented high-security cylinders, any door can become a formidable barrier to intruders.
Flexible
The ML2000 Series provides multi-function capability, employing a universal lockbody that offers the ability to reconfigure a select group of functions without disassembling the lock case and using only a few additional parts.
Aesthetics
Complement any application with the full range of trim designs and finishes offered with ML2000 Series. From stainless steel security trims to bright brass Vineyard™ levers, design continuum can be achieved without forfeiting aesthetics. For additional information regarding designer trim, see the Corbin Russwin Vineyard™ Collection and Muséo® Collection catalogs.
Key Advantages
- Patented Quick Reversible feature enables reversal of hands without disassembling the lock case (Patent pending and/or patent www.assaabloydss.com/patents)
- Security trims provide a vandal-resistant barrier
- Can be used with new or existing Corbin Russwin key systems. Also accepts cylinders of most other manufacturers.
- Provides life safety and security in a single door prep, saving the additional cost of a deadlock
- Thru-bolted trim designs for proper alignment and increased security Multi-function lockbody
Features
| Handing | Handed; quick reversible. The lockset can be re-handed without disassembling the lock case. |
| Door Thickness | 1-3/4" (44mm) standard. Optional door thicknesses available. |
| Backset | 2-3/4" (70mm) |
| Lockcase | Heavy-gauge steel, 5-7/8" (149mm) x 4" (102mm) x 15/16" (24mm). Optional: non-ferrous lockcase for corrosion resistance. |
| Front | Heavy-gauge steel, 8" (203mm) x 1-1/4" (32mm) x -3/32" (2mm). Accommodates flat doors and doors beveled 1/8" (3mm) in 2" (51mm). Furnished 1-1/16" (27mm), optional D138, wide for 1-3/8" (35mm) doors. |
| Armored Front | Wrought brass, bronze or stainless steel attached by machine screws to lockcase front. ML2000VR utilizes security Torx® screws. |
| Latchbolt | 2-piece mechanical with anti-friction insert, 5/8" (16mm) x 1" (25mm) x 3/4" (19mm) throw. |
| Auxiliary Latchbolt | 9/16" (14mm) effective throw and 3/8" (10mm) effective auxiliary latch deadlocking. |
| Deadbolt | One-piece stainless steel, 19/32" (15mm) x 1-1/4" (32mm) x 1" (25mm) throw. |
| Occupancy Indicator | Occupancy indicators for use with ML2000 x sectional trim. Design features option for dual indicators on double cylinder functions, confirming door is secured from either side. Emergency override standard for all non-keyed functions. |
| Hub | Knob: stainless steel, 9/32" (7mm) x 9/32" (7mm). Lever: steel, 5/16" (8mm). |
| Spacing | C. to c. knob/lever to cylinder: 3-5/8" (92mm). C. to c. knob/lever to thumbturn: 2-7/16" (62mm). |
| Strike | Wrought brass, bronze or stainless steel, ANSI straight lip standard, 4-7/8" (124mm) x 1-1/4" (32mm) x 1-1/8" (29mm) lip to center. Optional strikes, lip lengths and ANSI wrought strike box available. |
| Cylinder | Brass, 6-pin, L4 keyway, 0-bitted standard. Optional cylinders available. |
| Keys | Two nickel silver standard. |
| Keying features available | Master keying, Construction master keying, Visual key control, Concealed key control, Plug only to show (concealed shell) 7-pin cylinder, Security cylinder, Access 3® cylinder, Pyramid cylinder, Interchangeable core (IC), Security IC, Pyramid IC, Access 3® IC, Master ring cylinder, Flex head cylinder. |
| Warranty | Ten-year limited. |
Certification/Compliance
| ANSI/BHMA | Certified A156.13 Series 1000, Operational and Security Grade 1. Meets A117.1 Accessibility Code. |
| Federal | Meets FF-H-106C. |
| UL/cUL-UL10C Positive Pressure | All locks listed for A label and lesser class doors, 4' (122cm) x 10' (305cm) single or 8' (244cm) x 10' (305cm) pair (3 hour fire door). Letter F and UL symbol on armored front indicate listing. Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Corbin Russwin, Inc. makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire- rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings. |
| California State Reference Code | (Formerly Title 19, California State Fire Marshal Standard). All levers with returns, return to within 1/2" (13mm) of door face. |
| Windstorm/Hurricane | Certified (refer to local codes). |
