Description

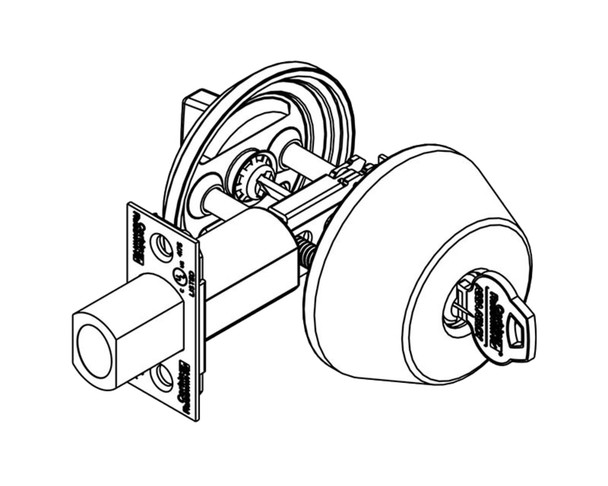

DL2211 605 CL7 Corbin Russwin Deadlock
Corbin Russwin is pleased to introduce the DL2200 and DL3200 cylindrical deadlocks. These easy to install deadlocks feature a solid steel deadbolt - with a hardened, free spinning, steel pin insert - and a 1" throw. Ideal for a variety of applications, the DL2200 is certified to 156.5 Grade 2 standards and the DL3200 is certified to 156.5 Grade 1 standards. Features Solid steel Deadbolt with a hardened, free spinning, steel pin insert and a 1" throw 1-3/4" door thickness standard; additional door thicknesses offered.
- Handing: Non-handed.
- Door Thickness: Standard - 1-3/4" (44mm). Optional door thicknesses available; see Quick Codes.
- Backset: Standard - 2-3/4" (70mm); Optional: 2-3/8" (60mm)
- Front: Standard - brass or stainless steel, 2-1/4" (57mm) x 1-1/8" (29mm). Optional: 1" width; see Quick Codes.
- Deadbolt: 1" throw, solid steel deadbolt with hardened, free spinning, steel pin insert.
- Strike: Standard - 2-3/4" (70mm) x1-1/8" (29mm). Optional strikes and wrought boxes available.
- Cylinder: Standard - brass, 6-pin, L4 keyway, 0-bitted. Security cylinder optional; see Quick Codes.
- Keys: Two nickel silver standard.
- Keying Features Available: Master keying; construction master keying; security; visual key control; concealed key control
- Warranty: One-year limited.
