Dorma 9300B 36'' Heavy Duty Rim Panic Exit Device


$702.95 - $905.95
SKU:
9300B
In Stock & Ready To Ship!
Current Stock:Only left:

Description


Dorma 9300B 36'' Heavy Duty Rim Panic Exit Device

DORMA 9000 Series exit devices reliably secure egress doors in compliance with all applicable fire/life safety code requirements.

The 9300 present a simple, heavy-duty, easily installed solution where high quality panic hardware is needed.

Product features

  • UL and CUL listed
  • Heavy duty cast chassis
  • Touchbar, rail, chassis and cover assemblies constructed of heavy gauge solid wrought materials
  • Field reversible
  • For wood and steel doors
  • Exit Only – No Trim
  • Size B Door: 28''-36''
  • Maximum door opening of 4' x 8'

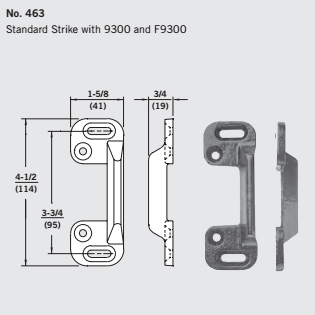

  • Standard 463 strike 4-1/2" x 1-5/8"
  • BHMA certified to ANSI A156.3 for Grade 1 exit devices
  • Finishes Available: 689 Aluminum, 630 Satin Stainless Steel, 613 Oil Rubbed Bronze



pdficon.pngInstallation Instructions

pdficon.pngTemplate

pdficon.pngParts Diagram
