Description

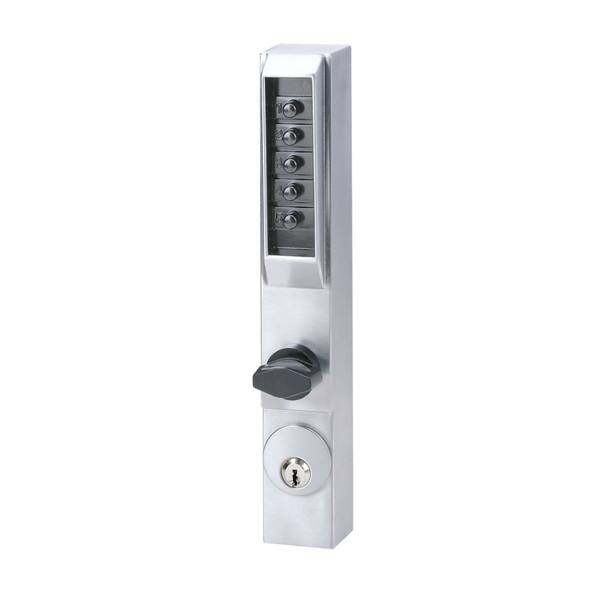

Mechanical pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards. Provides exterior access by combination. Fully mechanical lock eliminates the material and labor expense of battery replacements Adams Rite 4510/4710/4910 mortise latch.
Features:
- Single access code - one easy to manage code for all users
- Lock is easily programmed via keypad without removing lock from the door
- Non-handed; required drive assembly is factory handed - not field reversible
- Accepts Maximum Security (MS) mortise cylinders; can be used to override the lock combination and gain access using a key. Allows facilities to initiate or maintain a master-keyed security system (keyed alike or keyed differently)
Locking Device Options:
Mortise: Adams Rite 4510/4710/4910 mortise latch
Operation Mode Options :
- Single credential - access
- Passage - Allows access without using the lock entry code. Feature activated from the outside using cylinder override key
- Lockout - Disables the lock so that entry codes cannot be used to gain access. Access is permitted using the key override only. This is activated from the outside using the cylinder override key
Narrow stile lock, combo combo entry. Key override, passage, lockout. All metal cast front housing, force proof clutch-protected fixed thumb turn. Stile width: 1-7/8" minimum required for mounting. Finish: Satin Chrome 26D or Duranodic 55.
Drive Assembly: Factory Handed. Not Field Reversible
- 3010-19-41: 31/32" backset, RHR
- 3020-19-41: 31/32" backset, LHR
- 3030-19-41: 1-1/8" backset, RHR
- 3040-19-41: 1-1/8" backset, LHR
