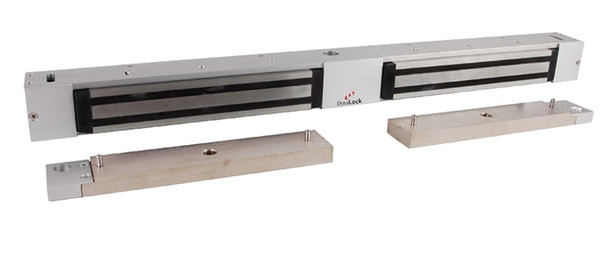

2268-20 DSM2 DYN2 DynaLock Maglock

Double Electromagnetic Lock Outswing, Door Status Monitor, Dynastat Force Sensor, 12/24VDC

• Finish:
• Series: DynaLock 2000 Series Maglocks
• Type: Electric Strikes, Bolts, Magnets
• Sub Type: Maglock

The 2268 Series is a full size 1200 lb. holding force electromagnet. It is designed for life safety and high security on rated or nonrated doors and frames. With a low 2" profile, the 2268 is perfect for opening heights of 7' or less to facilitate code compliance on designated egress doors. The 2268 is field selectable for 12VDC or 24VDC. Specify the RC option for AC voltage operation. Surge suppression is built-in and 12" long color coded wire leads are provided for easy installation. Optional integrated door and lock status sensors allow remote monitoring without the need to install separate "door contacts".
