E5063BWL-626-41

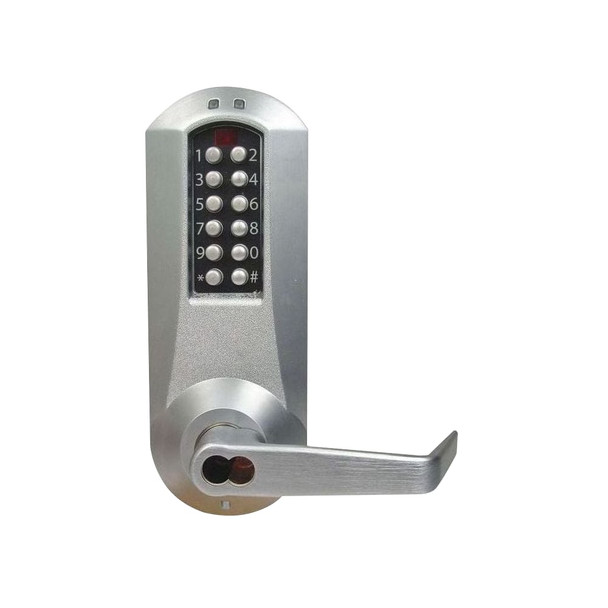

E-Plex 5000 Mortise Lock, LH, Winston Lever, 100 Access Codes, 3,000 Audit Events, 6/7-Pin SFIC Prep, Less Core, Satin Chrome

• Construction: Extra heavy-duty cylindrical lockset, solid cast housings, solid cast levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Door Handing:
  • Cylindrical and E-Plex Mortise—Non-handed, pre-assembled for left-hand door installations—easily changed in the field
  • Exit Trim—Non-handed
• Backsets:
  • Cylindrical—2 1⁄8" (70 mm), 2 3⁄8" (60 mm)
  • Mortise—2 3⁄4" (70 mm)
  • Exit Trim—Varies by exit device type
• Latch:
  • Cylindrical—1⁄2" (13 mm) latch, 3⁄4" (19 mm) latch (optional)
  • Mortise—3⁄4" (19 mm) latch, 1" (25 mm) deadbolt (optional)
