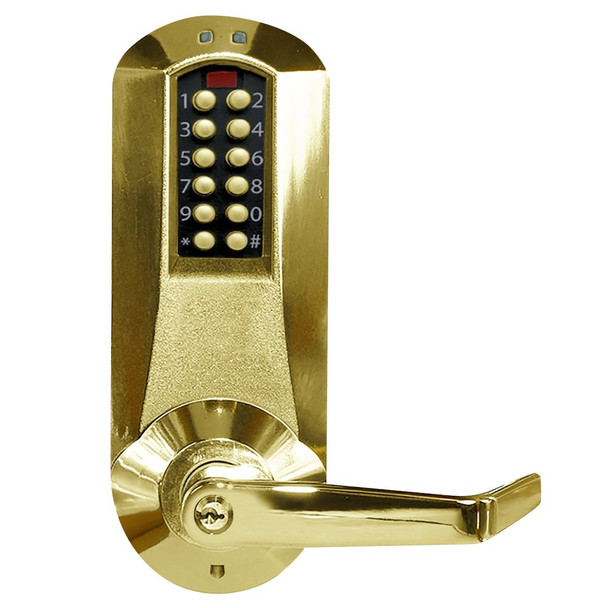

E5232XSWL-605-41

E-Plex 5200 Cylindrical Lock, 3,000 Access Codes, 30,000 Audit Events, KIL, Schalge C Keyway, 2-3/8" Backset, 1/2" Throw, Bright Brass

• Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Handing: Non-handed, pre-assembled for left-hand door installation—easily changed in the field
• Backset:
  • Cylindrical: 2¾" (70 mm) backset, 2⅜" (60 mm) backset
    • Mortise: 2¾" (70 mm) backset
    • Exit Trim Model: Varies by Exit Device
• Latches:
  • Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Mortise Models: ¾" (19 mm) latch, 1" (25 mm) deadbolt (optional)
• Exit Device: Not supplied (see list above for compatibility)
• Exit Device Latch: Supplied with Exit Device
• Exit Device Hub Rotation: Up to 60º
• Minimum Stile Required: 5" (127 mm)
