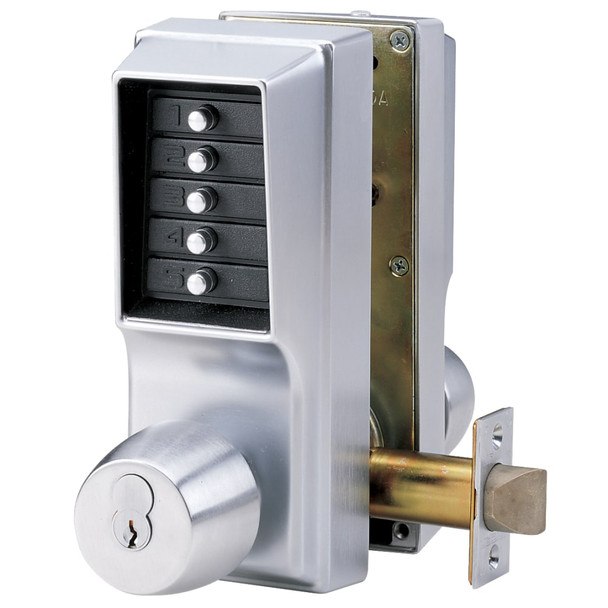

EE1021R/EE1021R-26D-41

Cylindrical Knob Lock, Combination or Key Override Entry, Combination or Key Override Exit, 2-3/4" Backset, 1/2" Throw Latch, Sargent LFIC Prep, Less Core, Satin Chrome

• Construction: Heavy-duty cylindrical lock with cast front and back housings; cast knobs
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Door Handing: Factory-handed for left-hand doors; easily field reversible
• Backset: 2¾" (70 mm)
• Latch: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
• Strike: Standard strike plate; ASA strike plate
• Door Preparation: ASA 161-door preparation with additional through bore holes
• Door Thickness: 1¾" (44 mm) to 2¼" (57 mm); modified lock for more than 2" (51) thick door (up to 2¼") available (specify when ordering)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 10.25 lbs. (4.6 kg)
