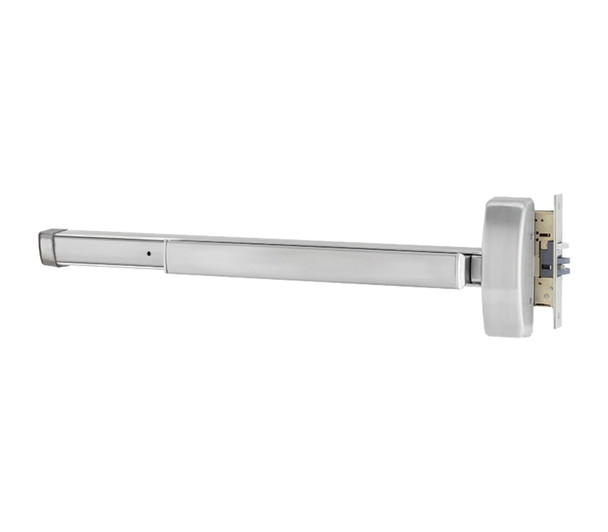

FL2208LBR 628 48 Precision Hardware Inc (PHI) Exit Device
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nationÃÂs largest healthcare and educational facilities prefer the Apex for itÃÂs aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
- DEVICE - Covers ANSI A115.2 (Type 161), A115.18 cylinder lock and A115.1 (Type 86) Mortise Lock preparation.
- FUNCTIONS - Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
- BASE MATERIAL - The Covers, Touchbar, Device Channel, Lock/Hinge Side Filler, Vertical Rods and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components. See “Finish & Base Material” chart on page 3. CHASSIS - Investment Cast Steel, Zinc Dichromated.
- TOP LATCHBOLT - Stainless Steel, Deadlocking, 3/4" throw.
- REVERSIBLE - Reversible for all functions and trims. Standard packing RHRB.
- UL LISTED - Panic and Fire Exit Hardware. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA - Devices are BHMA certified ANSI 156.3, Grade 1.
- FINISHES - 605, 606, 612, 613, 625, 628, 630.
- CYLINDERS - Rim type, not furnished standard. Specify when required.
- STILE WIDTH - See Stile Information on page 36.
- LESS BOTTOM ROD (LBR) OPTION - Specify suffix “LBR” (e.g. 2208LBR). See UL FIRE LABEL RATING chart on page 39. Fire Rated Devices include FB277 Fire Bolt Assembly. F
- RETROFIT APPLICATIONS - The 2200 and FL2200 Series Devices are designed to retrofit into other manufacturers’ mounting hole locations. 1700 Series Pull Trim and 4900 Series Lever Trim may also be factory set for these applications by specifying prefix “R” (e.g. 2208 R4908A).
