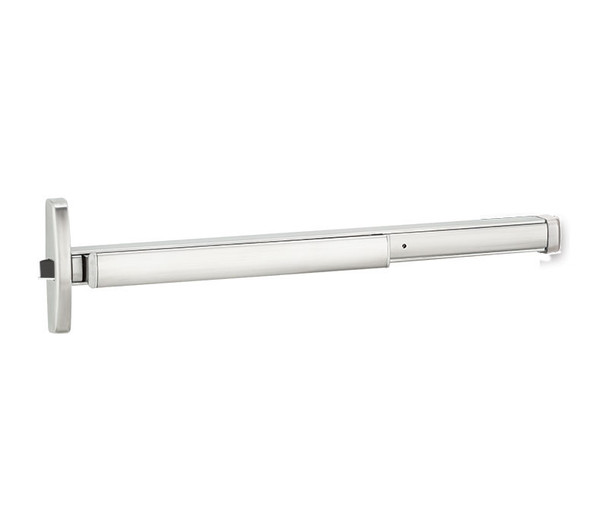

FL2801LBR 628 48 Precision Hardware Inc (PHI) Exit Device
The Apex 2000 Series Touchbar Style Exit Device is highly regarded by architects and end-users alike. Many of the nationÃs largest healthcare and educational facilities prefer the Apex for itÃs aesthetic design and efficient engineering. All Apex 2000 Series Exit Devices are UL listed for panic and fire hardware and are certified to ANSI A156.3 Grade 1.
- FUNCTIONS - Functions are field selectable. The device is furnished for a desired function if specified. If not specified the “03” function is furnished standard.
- BASE MATERIAL - The Cover, Touchbar, Device Channel, Lock/Hinge Side Filler and End Cap are furnished of heavy wrought Brass, Bronze or Stainless Steel. US28 Devices are furnished with Aluminum, Brass, Bronze and Stainless Steel components.
- CHASSIS - Lock Stile Assembly - Investment Cast Steel, Zinc Dichromated.
- VERTICAL RODS - Steel, plated. Top Rod is adjustable from 6'-8" to 8'-0" or from 8'-1" to 10'-0". Note: All vertical rod lengths are based on 39 15/16” exit device horizontal centerline.
- TOP LATCHBOLT - Stainless Steel, Deadlocking, 3 /4" throw.
- TOP STRIKE - No. S519 Surface applied, Investment Cast Stainless Steel, Black Powder Coated.
- BOTTOM STRIKE - No. S460 Flush mounted, Steel, Black Powder Coated.
- DOGGING - 1/4" turn hex key dogging standard. NOT available on Fire Exit Hardware.
- TOUCHBAR HEIGHT - 39-15/16" from floor standard. Specify required height if other than standard.
- REVERSIBLE - Reversible for all functions and trims. Standard packaging RHRB. UL LISTED - Panic and Fire Exit Hardware. For FIRE EXIT HARDWARE Ratings see page 33. Conforms to UL10C and UBC 7-2.
- ANSI/BHMA - Devices are BHMA certified for ANSI 156.3, Grade 1.
- FINISHES - 605, 606, 612, 613, 625, 628, 630.
- CYLINDERS - Rim Type, not furnished standard. Specify when required.
