Description

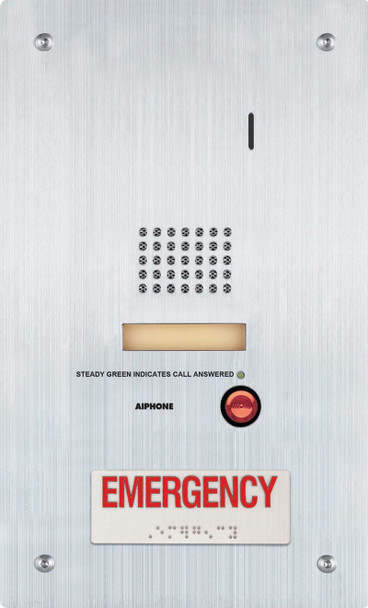

IS-SS-RA Aiphone Intercom
Has a stainless steel flush mount audio door station with an emergency call button. The unit is equipped with ADA compliant lettering and Braille signage. A call status indicator is included to meet ADA rescue assistance requirements.
- Power Source: IS-CCU, IS-SCU, IS-RCU, IS-IPC: 48V DC - Use IS-PU-UL
- IS-IPDV, IS-IPDVF, IS-IPMV: 24V DC - Use PS-2420UL or PoE (802.3af)
- Network: Interface: 10 BASE-T / 100 BASE-TX Ethernet, Protocol: TCP, UDP, IGMP (Multicast)
- Software: Processor: 2GHz or faster, RAM: minimum 1GB, Storage: 10MB or more (additional memory required for movie recording), Sound Card: 8-bit full duplex - DirectSound compatible, Display: 1024 x 786 or higher, Runtime: Microsoft.NET framework 2.0 or later, Network: Wired 100Base-TX recommended, Operating System: Windows XP (SP3), Windows Vista (SP1), or Windows 7
- Connections: RJ45 (10/100 Mbit Ethernet)
- Calling: Chime, image, and audio approx. 45 seconds
- Video Monitor: 3-1/2" direct-view TFT color LCD
- Min. Illumination: 5 Lux at 1' distance
- Night Viewing: Up to 1' from camera with white LED projected
- Door Release:Contact rating: 24V AC/DC, 500mA
