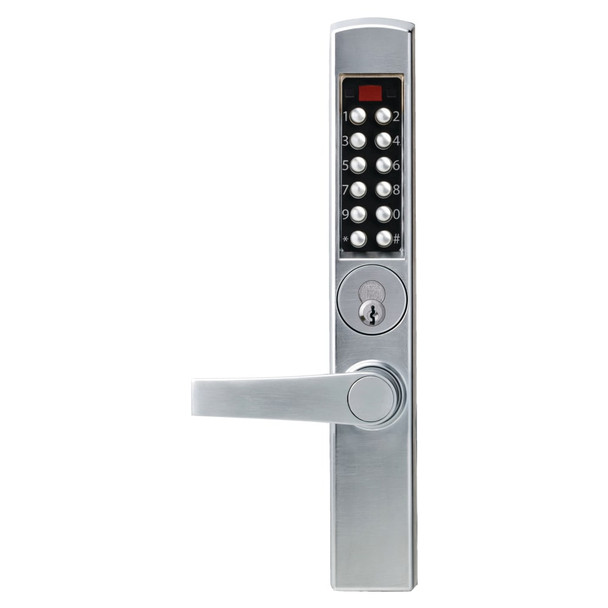

Description
The E-Plex 3000 Series provides exterior access by combination, while allowing free egress. This electronic pushbutton narrow stile lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 300 Access Codes and 9,000 Audit Events,
Features
Locking Devices: Retrofits inside trim for Adams Rite locks 1850, 1950, 4070, 4510, 4520, 4530, 4710, 4720, 4730, 4900, 4920AN, MS 1850S, MS 1950S, and 8400 Series (not included). Adapter Kit available for various manufacturers’narrow stile Exit Devices; see accessories section.
Number of Codes: 300 access codes per door
Audit Trail: The most recent 9,000 events are recorded in memory, including use of the mechanical key override
Programming: Locks are programmed via keypad
Operation Modes:
- PIN access
- Lockout
- Passage—PIN or key enabled, can be pre-programmed to re-lock after a certain number of hours (from 1 to 24)
Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours
User Parameters:
- Code length: adjustable to accept 4 to 8 digits
- Anti-tamper lockout: adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
- Re-lock time: adjustable from 2 to 20 seconds
Ease of Installation: No wire installation—eliminates wiring to or through the door—no risk of pinched wires
Specifications
- Construction: Extra heavy-duty lockset, solid cast housing, solid cast lever or thumbturn wear tested for extensive use in indoor and outdoor applications
- Numeric Keypad: Vandal resistant, solid metal pushbuttons
- Handing: Non-handed, easily changed in the field
- Backset: 31⁄32" (25 mm) minimum
- Door Thickness: 1¾" (44 mm)
- Easily installs on narrow stile doors with four mounting screws
- Minimum Stile Recommended: 2" (51 mm)
- Function: Mortise (Adams Rite)
- Locking Device: Mortise Dead Latch for Adams Rite 4070, 4510, No Charge 4520, 4530, 4710, 4720, 4730, 4900, and 4920AN. Also fits 8400 Mortise Exit.
- Key Override: Mortise, I/C Housing, Best and Equivalents (6-pin length); Cylinder not included
- Narrow Stile Lever
- Finishes Available: Satin Chrome
