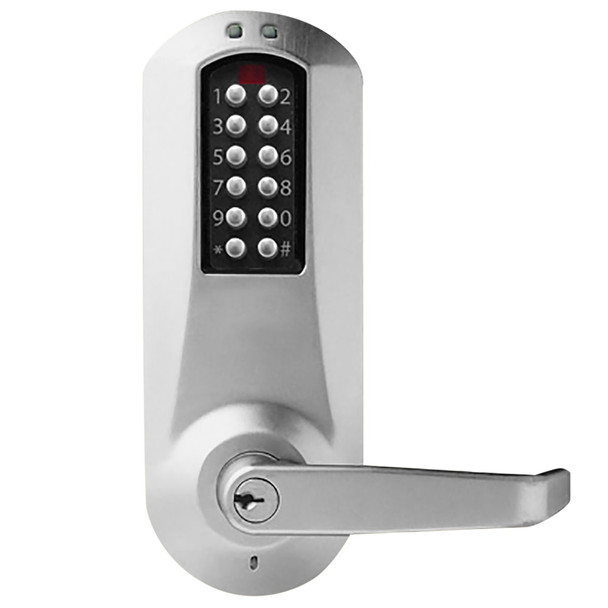

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Programming: Locks are programmed via keypad

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Operation Modes:

PIN access
Lockout
Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels:

Master Level—Performs all set-up and programming functions
Manager Level—Administers common programming functions
Access User Level—Entry granted with valid PIN
Service Level—Codes for single event or single day access, programmable in advance
Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters:

Code length—Adjustable to accept 4 to 8 digits
Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
Relock time—Adjustable from 2 to 20 seconds

Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

Specifications

Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Non-handed; pre-assembled for left-hand door installation—easily changed in the field
Function: Cylindrical Lock (cyl)
Locking Device: Cylindrical ½" (13 mm) throw latch, floating face plate 2¾" (70 mm) backset
Key Override: K-I-L Kaba Cylinder (Kaba 90 Keyway) included
Winston Lever
Finishes Available: 626 Satin Chrome
