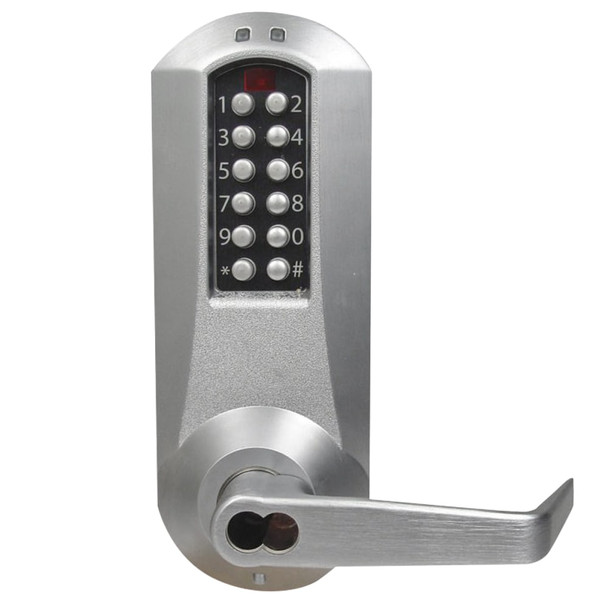

Kaba E-Plex E5000 Series E5066SWL-626-41 1-1/4" Mortise KIL E-Plex - Schlage R/C Lever Electronic Lock

Installation Instructions

The E-Plex 5000 Electronic Pushbutton Lock Series provides exterior access by combination, while allowing free egress. This electronic pushbutton lock eliminates problems and costs associated with issuing, controlling, and collecting keys and cards, has up to 100 Access Codes and is programmed via keypad or with optional Microsoft Excel-based software.

Number of Codes: Multiple Users—100 Codes; upgrades to 300 Codes with optional software

Audit Trail: The most recent 9,000 lock events are recorded in memory, including use of the mechanical key override. Software is required to view audit events.

Programming: Locks are programmed via keypad

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Operation Modes:

• PIN access
• Lockout
• Passage—can be toggled on/off or can be pre-programmed to relock after a certain number of hours (from 1 to 24)

Authority Levels:

• Master Level—Performs all set-up and programming functions
• Manager Level—Administers common programming functions
• Access User Level—Entry granted with valid PIN
• Service Level—Codes for single event or single day access, programmable in advance
• Maintenance Level—No access is granted, but information can be uploaded/downloaded to/from the lock

User Parameters:

• Code length—Adjustable to accept 4 to 8 digits
• Anti-tamper lockout—Adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Relock time—Adjustable from 2 to 20 seconds

Ease of Installation: LectroBoltTM eliminates wiring to or through the door—no risk of pinched wires

Specifications

• Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Non-handed; pre-assembled for left-hand door installation—easily changed in the field
• Function: American Steel Mortise (ASM)
• Locking Device: STD Mortise 1¼" (32 mm) face plate no deadbolt (non-handed)
• Key Override: R/C Schlage
• Winston Lever
• Finishes Available: 626 Satin Chrome
