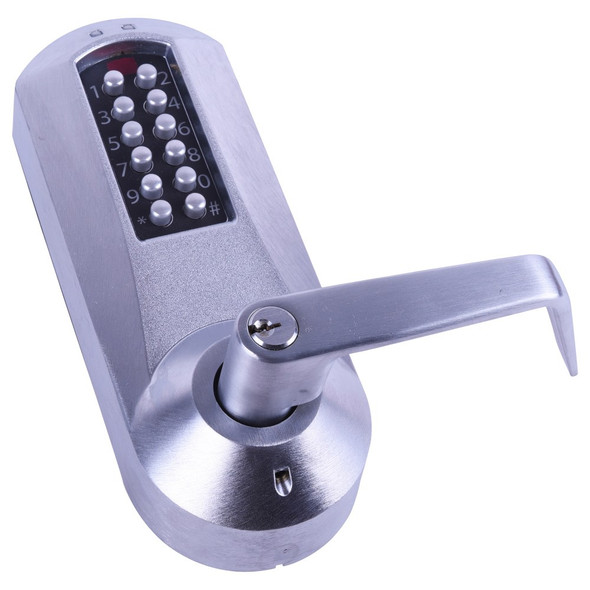

Kaba E-Plex E5700 Series E5710BWL-626-41 I/C Best Exit Trim Electronic Lock

Template

Installation Instructions

Electronic lock with dual credential capability—PIN and/or PROX card (HID, 125 kHz, 26 to 84-bit format). Lock is scheduled to require credentials based on security and convenience requirements.

• PIN only
• PROX card only
• PIN + PROX card

No Wires: E-Plex’s LectroBolt eliminates running wires to or through the door—no risk of damage from pinched wires that can result in costly callbacks

Number of Users: 3,000 (per door) with software; 300 in LearnLok mode

Programming: Locks are programmed simply via keypad using LearnLok Feature without any software, or with optional E-Plex Enterprise Software to manage a large number of doors and users

Handing: Non-handed, pre-assembled for left-hand door installations—easily changed in the field

Scheduling:

• Access schedules—up to 16 different access schedules may be programmed into lock
• Holiday/Vacation—up to 32 different holiday/ vacation blocks may be programmed into lock

Operation Modes:

• PIN access
• Passage—can be toggled on/off or can be pre-programmed to re-lock after a certain number of hours
• Lockout

Authority Levels: Five different levels allow who has access to specific lock functions, including: Service Codes—programmed for one-time access or "come-and-go" access for 1 to 24 hours

User Parameters:

• Code length—adjustable to accept 4 to 8 digits
• Anti-tamper lockout—adjustable from 3 to 9 invalid attempts with an adjustable period of 0 to 90 seconds
• Re-lock time—adjustable from 2 to 20 seconds

Ease of Installation:

Simple, easy-to-install reader unit is predrilled for single gang box or wall mounting. Lockable interface controller unit enclosure is predrilled and has knockouts for simple wiring with low voltage connections directly into off-the-shelf power interface units. Product also includes a contact closure, alarm shunt output to interface with new or existing fire alarms and security systems.

Specifications

• Construction: Extra heavy-duty Grade 1 lock; cylindrical lockset, solid cast housings; solid cast zinc levers, cylindrical drive wear tested for extensive use in indoor and outdoor applications
• Keypad: Vandal resistant, solid metal pushbuttons
• Battery: Batteries located in interior housing; provides quick and easy battery replacement for institutions; four AA Alkaline batteries provide up to 120,000 cycles; 400,000 cycles with high capacity "C" battery pack
• Function: Exit Trim (E.T.)
• Locking Device:Exit Trim
• Key Override: I/C Best and Equivalents (6 or 7-pin length) (Cylinder sold separate)
• Lever: Winston
• Finish Available: 626 Satin Chrome
• Warranty: 3-year warranty from date of installation; built-in warranty counter in lock memory
