Description
Simplex Mechanical Pushbutton Locks eliminate problems and costs associated with issuing, controlling, and collecting keys and cards.
Mechanical pushbutton lock provides fully mechanical access control, while allowing free egress at all times by interior thumbturn. Deadbolt models must be manually relocked. Deadlocking spring latch models automatically relock each time the door closes. This fully mechanical lock eliminates the material and labor expense of battery replacements, has a single access-code and is programmed via the keypad without removing the lock from the door.

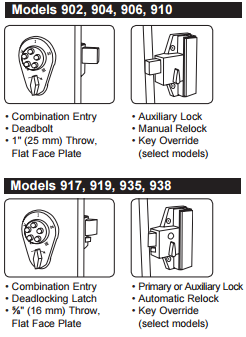

Models Available
- 904: 1" (25 mm) Deadbolt Latch, 1¾"–2⅛" (44 mm–54 mm) thick
- 919: ⅝" (16 mm) Deadlocking Spring Latch, flat front, 1¾"–2⅛"(44 mm–54 mm) thick, latch holdback
Strike options Available
- Angle Strike
- Flat Strike
-
Finishes:
-
04 (606) Satin Brass
-
26D (626) Satin Chrome
-
Features
No Battery: Fully mechanical lock eliminates the material and labor expense of battery replacements
Number of Codes: Single access code—one easy-to-manage code for all users
Programming: Lock is easily programmed via keypad without removing lock from the door
Handing: Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation
Operation Modes:
- Pushbutton Access
- Latch Holdback—keeps latch retracted to allow access with combination (select models)
Economical: A cost effective access control solution
Technical Data
Construction: All metal cast front housing, force-resistant, clutch-protected thumbturn, metal exterior trim plate
Numeric Keypad: Vandal resistant, solid metal pushbuttons
Handing: Field reversible latch; invert the lock for right-hand doors; roman numerals are easily read in either orientation

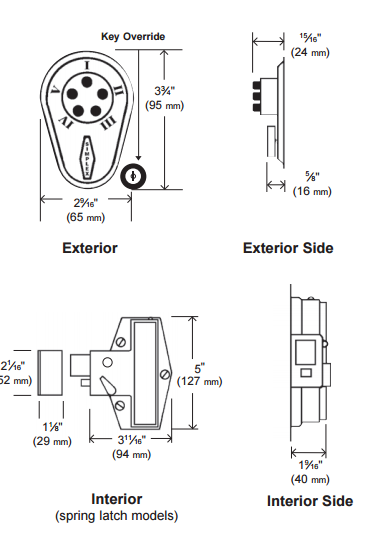

Backset: 2 9⁄16" (65 mm) for outswing doors, 2½" (64 mm) for inswing doors
Door Thickness:
- 1⅜" (35 mm) to 1½" (38 mm)
- 1¾" (44 mm) to 2⅛" (54 mm)
Latch: 1" (25 mm) deadbolt; ⅝" deadlocking spring latch
Strike: Includes strike plate for outswing doors, cast box strike for inswing doors; metal door frames require the optional surface mortise box strike or use of an adapter kit
Durability: Weather resistant
Warranty: 1-year warranty
