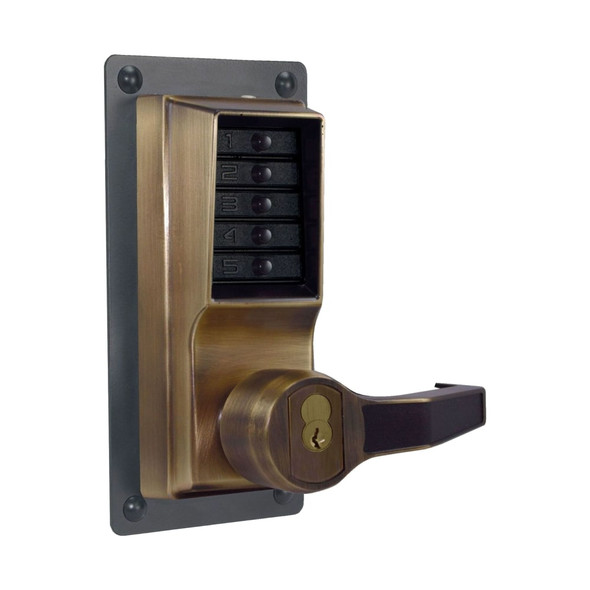

LRP1020B-05-41 DormaKaba Rim Exit Trim with Keypad

Simplex mechanical pushbutton locks offer a convenient way to control access between public and private areas. There are no keys or cards to manage, no computers to program, no batteries to replace, and combinations can be changed in seconds without removing the lock from the door.

• Construction: Heavy-duty cast front housing; heavy-duty mounting plate; fixed ADA-compliant lever
• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing: Factory-handed; not field reversible
• Exit Device Strike: Supplied with Exit Device
• Tailpiece:
  • 2¾" (70 mm) tailpiece for Exit Device operation from outside
  • Optional 5" (125 mm) tailpiece for freezer doors (sold separately, part # 74773-000-01)
• Minimum Stile Recommended: 5" (127 mm)
• Weight: 8 lbs. (3.6 kg)
• Interchangeable Cores: Small format—Best and equivalents (6 or 7-pin length); core not included
• Removable Cores: Large format—Medeco/ASSA/Yale/Abloy (5 or 6-pin length), Corbin Russwin, Schlage, and Sargent; core not included
• Door Preparation: Recessed through bolts may be required for Exit Device preparation
• Door Thickness:
  • 1⅜" (35 mm) to 2¼" (57 mm)
  • Optional 5" (127 mm) tailpiece (sold separately, part # 74773-000-01)
• Accessibility Standard: Americans with Disabilities Act (ADA); fixed ADA-compliant lever
• Durability: Weather resistant
• Fire Rating: 3-hour UL/ULC fire rating for "A" labeled doors
• Warranty: 3-year warranty
