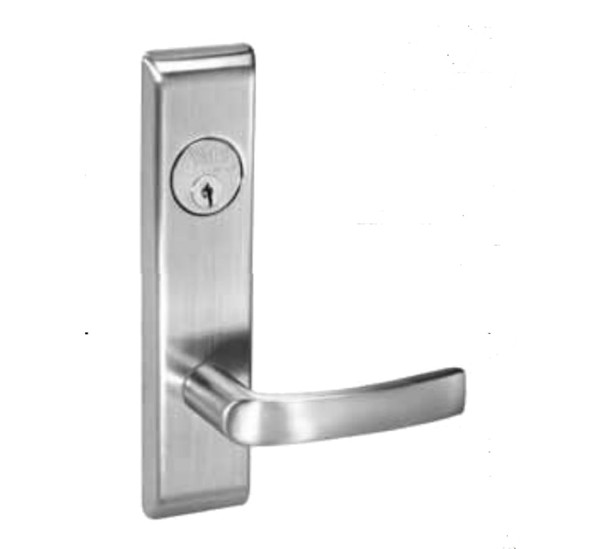

MOCN8802FL 626 Yale Mortise Lock

Yale 8800 Series Mortise Locks are designed and manufactured for uncompromising strength and durability in a range of commercial applications. Lock installation is made easy with quick lever handing, field reversible latchbolt and standard nonhanded strike. The 8800 Series Mortise Lock offers a new measure of security, featuring a reinforced stainless steel deadbolt, heavy-duty, vandal-resistant trim and ANSI/BHMA Grade 1 certification for long life and durability.

• ANSI/BHMA: Certified ANSI/BHMA A156.13, Series 1000, Operational Grade 1
• UL-cUL: UL/cUL fire rated up to 3 hours
• Windstorm: Certified (refer to local codes)
• Mechanism: Stainless steel
• Backset: 2-3/4"
• Latchbolt: 3/4" stainless steel throw
• Door Thickness: 1-3/4" standard, to 3-1/4" thick doors to order
• Fronts: Bevel front, free-floating to adjust from flat to standard bevel of 1/8" in 2"
• Cylinders: Brass, 6-pin, keyed-random cylinder with two keys furnished standard, 7-pin available to order
• Reversibility: Field reversible handing
• Strikes: 1-1/4" curved lip for 1-3/4" door standard; other lip lengths to special order; all reversible
• Finishes: Available in 17 finishes
• Warranty: 10 year mechanical

Yale Commercial Finishes Chart
