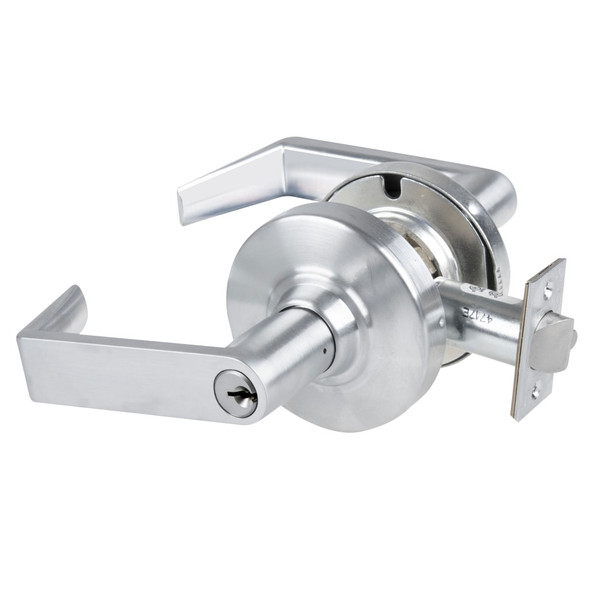

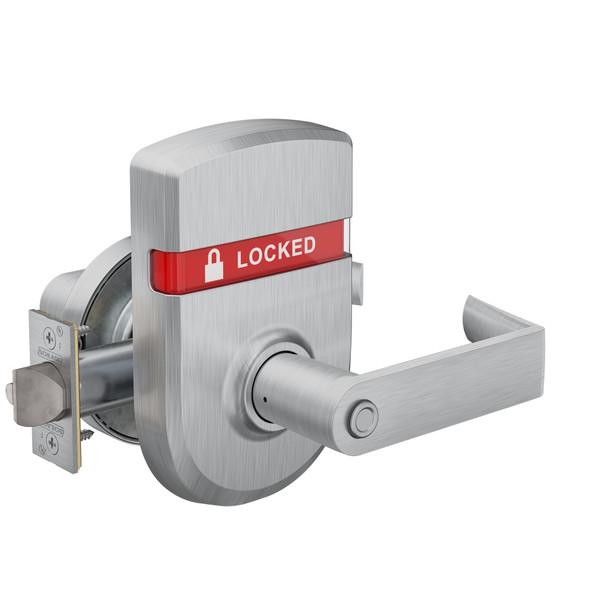

ND91PD RHO 626 RH IS-LOC Schlage Cylindrical Lock
Walter Schlage invented the cylindrical lock in 1920. Since then, the Schlage Lock Company has consistently delivered innovation and continuous improvement. In that tradition, The ND Series Cylindrical Lockset is a proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any application. The Schlage ND Series Locksets are commonly used in Healthcare, Education, Government, Office, Retail, and other commercial applications. The ND Series has been certified Grade 1; exceeding 3-million operating cycles without failure. This provides confidence that the lock will last within any type of facility. Finally, Schlage has incorporated wire-wireless capabilities that meet the access control and security needs of every facility owner.
- Handing: All ND-Series lever locksets are non-handed.
- Door Thickness: 1 5/8” to 2 1/8” (41mm–54mm) standard including Vandlgard® functions. 1 3/4” - 2” for function ND85. See accessories for spacers required for 1 3/8” doors.
- Backset: 2 3/4” (70 mm) standard. 2 3/8”, 3 3/4” and 5” (60 mm, 95 mm, 127 mm) optional.
- Faceplate: Brass, bronze or stainless steel. 1 1/8” x 2 1/4” (29 mm x 57mm) square corner, beveled.
- Lock Chassis: Zinc plated for corrosion resistance.
- Latch Bolt: Steel, 1/2” (12mm) throw, deadlocking on keyed and exterior functions. 3/4” (19 mm) throw anti-friction latch available for pairs of fire doors.
- Exposed Trim: Levers: Pressure cast zinc, plated to match finish symbols.
- Roses: Brass, bronze or zinc.
- Strike: ANSI curved lip strike 1 1/4” x 4 7/8” x 1 3/16” lip to center standard. Optional strikes, lip lengths and ANSI strike box available. See page 21.
- Cylinder & Keys: 6-pin Everest 29 S123 keyway standard with two patented nickel silver keys per lock.
- Keying Options: Interchangeable core and Primus high security cylinders. Master keying, grand master keying and construction keying.
- Warranty: Ten-year limited for all functions including Vandlgard.
