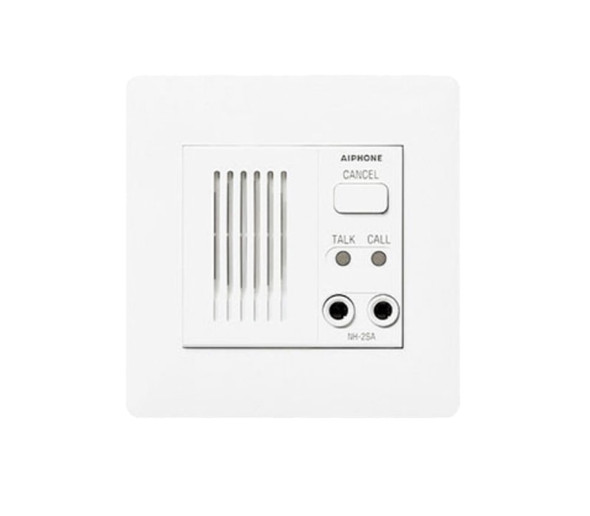

NH-1SA/A Aiphone Intercom

Patient/Resident Single-Jack Bedside Sub Station, One Jack for Bedside Call Button, Cancel Button, Flush Mount, Hands-Free Communication, Fits 2-Gang Box

• Power Source: Use PS-2420UL x 2 (NHX-80X); Powered by CCU (NHX-80X)
• Calling: Routine call, urgent bathroom call and cord-out trouble call (up to 5 calls can be displayed on the NHX-50M)
• Communication: Single and private talk channel, press-to-talk or handset voice-actuation
• Call-in Priority:
  • 1) Cord-out trouble call
  • 2) urgent bathroom call and NHR-3TS common area bathroom or staff call
  • 3) routine call, sub station call-ins on standby connected according to urgency level and time of call
• Warning Tones:
  • 1) Line-off trouble at bedside or NHR-3TS and duty station (to stop tone on duty station, plug in 2-pin jumper to CN104 in CCU)
  • 2) 90 sec. elapse timer: call tone goes up to HIGH level
  • 3) 90 sec. off-hook timer: steady tone will notify that handset is off-hook
• Distance: Subs to CCU: 165’(22AWG) - Duty station to CCU: 65’(22AWG) - CCU to master: 65’(22AWG)
• Wiring Type: Sub/Duty station to CCU: Aiphone #862208 - CCU to master: Aiphone #862210
• Wiring: 10-pin plug-in connector (to NHX-80X), provided with preset volume controls, can verify connection of all sub stations
