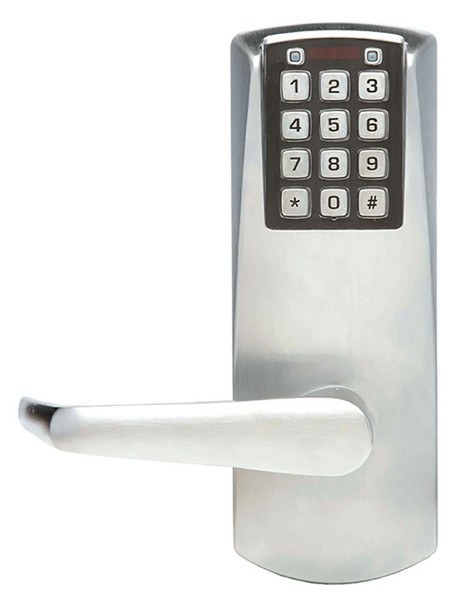

P201YLL-626-41

PowerPlex Exit Trim, Yale 7100, Corbin ED5200 Rim Devices, No Key Override, Satin Chrome,

• Numeric Keypad: Vandal resistant, solid metal pushbuttons
• Handing:
  • Non-handed, pre-assembled for left-hand door installation — easily changed in the field
• Backset:
  • Cylindrical: 2 ¾" (70 mm) backset, 2 ⅜" (60 mm) backset
  • Mortise: 2 ¾" (70 mm) backset
  • Exit Trim Model: Varies by exit device
• Latches:
  • Cylindrical Models: ½" (13 mm) throw latch, ¾" (19 mm) throw latch (optional)
  • Mortise Models: ¾" (19 mm) latch, 1" (25 mm) dead bolt (optional)
• Strikes:
  • Cylindrical Models: Packaged standard with both ANSI A115.3 “T” Strike and A115.2 ASA Strike
• Minimum Stile Required: 5" (127 mm)
• Key Override Options
• Key-in-Lever Cylinder: Kaba 1539 6-pin cylinder — Schlage “C” Keyway
• Interchangeable Core: Small format — Best and equivalent (6 or 7-pin length); cylinder not included
