Description
Trim Plate Installation Instructions

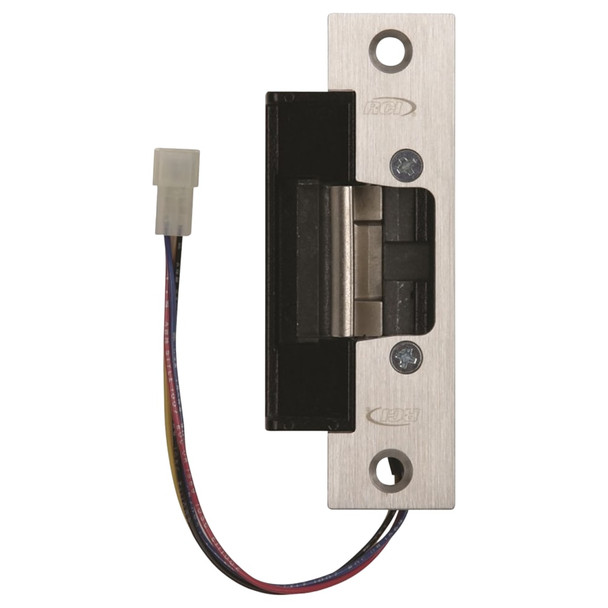

S6504 For ANSI Round Corner Centerline Latch Entry (3/4" Latch Projection & 5/8" Low Profile)
RCI's "all-in-one" 6 Series electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors.
The S65 Standard version is ideal when you require 3/4" latch projection.
Applications
- Commercial Centers
- Industrial Buildings
- Educational Facilities
- Retail Outlets
- Health Care Facilities
- Office Complex
Standard Features
- Field selectable lock mode - choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode requires DC voltage)
- Field selectable voltage input - accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strike
- UL Listed for 1500 lbs static strength
- 1/4" Horizontal Adjustment
- Modular "plug-in" wire connectors for fast hook-up
- Modular faceplate designs for a variety of frame types and cut outs
- 1-3/16" (S), 1-1/16" (L) frame depth
- Stainless steel faceplate
- Non-Handed
- Trim Plate Included
Specifications
- Type: Low Profile
- Latch Projection: 1/2" or 5/8''
- For Aluminum Frames
- Dimensions: 1-1/4"W x 4-7/8"H
- Mode: Field Selectable FL / FUL*
- Voltage: 12 to 24VAC & 12 or 24VDC
- Finish Available: 32D Brushed Stainless Steel
*Fail Locked = Fail Secure = FL
*Fail Unlocked = Fail Safe = FUL
