Description
Rofu 1400 Series 1440-08 24VDC/VAC Fail Secure Mortise Lock Electric Strike
Application
Electric Strikes for use with Mortise locksets except Schlage, Sargent and Yale. For Commercial, New and Retrofit Uses
Specifications
- ANSI/BHMA A 156.5 (1 1/4″ x 4 7/8″) fit cutout Specification A 115.1 (with slight jamb modification)
- Stainless Steel – Made in USA
- Frame Type – Hollow Metal or Aluminum Jamb
- Corrosion – Resistant Housing and Moving Parts
- Tamper Strength Test – 1700 pounds
- Latch Opening is Below Center Line (BCL) and opening starts at center line
- Cycle Test of 500,000 cycles
- Keeper depth of 5/8″, maximum latch projection possible with 1/8″ of door/frame clearance 3/4″
- Strike depth of 1.50″ overall
- Limited Warranty – 36 Months (3 years)
- PoE Friendly!
- Made in the USA
Available Models
- 1440-01 = 3-6VDC or 8-16VAC Fail Secure
- 1440-05 = 12VDC/12VAC Fail Secure
- 1440-08 = 24VDC/VAC Fail Secure
Rofu 1430 Line Art

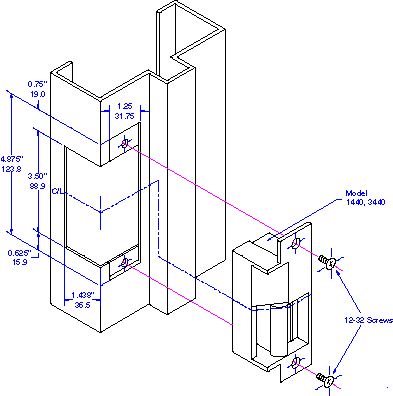

Rofu 1430 Hollow Metal Frame Installation
