Description
Rofu 1400 Series 1450-08 24VDC/VAC Fail Sec High Security CL (Centerline) Electric Strike
Applications
- Electric Strikes for use with Mortise and Cylindrical locksets
- For Commercial and Residential, New and Retrofit Uses
Specifications
- ANSI/BHMA A 156.5 (1 1/4″ x 4 7/8″) fit cutout Specification A 115.1 (with slight jamb modification)
- Stainless Steel – Made in USA
- Frame Type – Hollow Metal or Aluminum Jamb
- Corrosion – Resistant Housing and Moving Parts
- Tamper Strength Test – 1700 pounds
- Center Line (CL) (this is a non handed unit and can ship with either a LH or RH solenoid)
- Cycle Test of 500,000 cycles
- Fully Tamperproof Horizontal Adjustment to compensate for misalignment and warpage (this works great when there is unexpected back pressure)
- Keeper depth of 5/8″, maximum latch projection possible with 1/8″ of door/frame clearance 3/4″
- Strike depth of 1.50″ overall
- Limited Warranty – 36 Months (3 years)
- PoE Friendly!
- Made in the USA
Available Models
- 1450-05 = 12VDC/12VAC Fail Secure
- 1450-08 = 24VDC/VAC Fail Secure

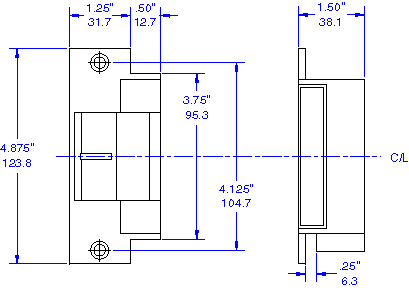

Rofu 1450 Line Art

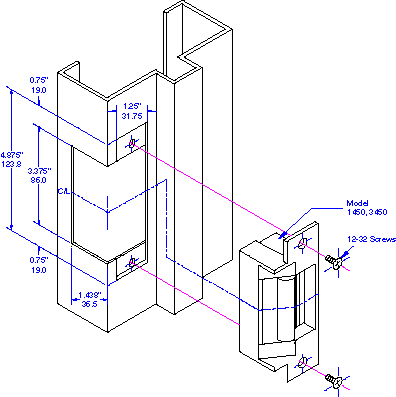

Rofu 1450 Hollow Metal Frame Installation
