Rofu 1500 Series 1505-08 24VDC / 24VAC Fail Secure Electric Strike


$106.77 - $126.77
SKU:
1505-08
In Stock & Ready To Ship!
Current Stock:Only left:

Description


Rofu 1500 Series 1505-08 24VDC / 24VAC Fail Secure Electric Strike

 *Same dimensions as 1501 but solenoid mounts to the faceplate on a side flange.

Applications

  • Electric strikes for use with mortise and cylindrical locksets.
  • For Commercial and Residential, New and Retrofit Uses.

Specifications

  • Faceplate Dimensions – 1 1/4″ x 5 7/8″
  • Steel Faceplate – Made in USA
  • Frame Type – Wood
  • Corrosion – Resistant Housing and Moving Parts
  • Tamper Strength Test – 1000 pounds
  • Offset opening (either up or down, this is a non handed unit)
  • Cycle test of 500,000 cycles
  • Keeper depth of 5/8″, Maximum latch projection possible with 1/8″ door frame clearance 3/4″
  • Strike depth of 1.43″ overall
  • Limited Warranty – 36 Months (3 Years)
  • PoE Friendly!

Available Models

  • 1505-01 = 3-6VDC or 8-16VAC Fail Secure
  • 1505-05 = 12VDC/12VAC Fail Secure
  • 1505-08 = 24VDC/VAC Fail Secure

Rofu 1505 Line Art

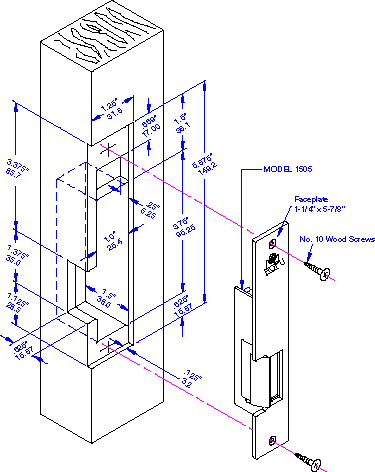

Rofu 1505 Wood Frame Installation
