Description

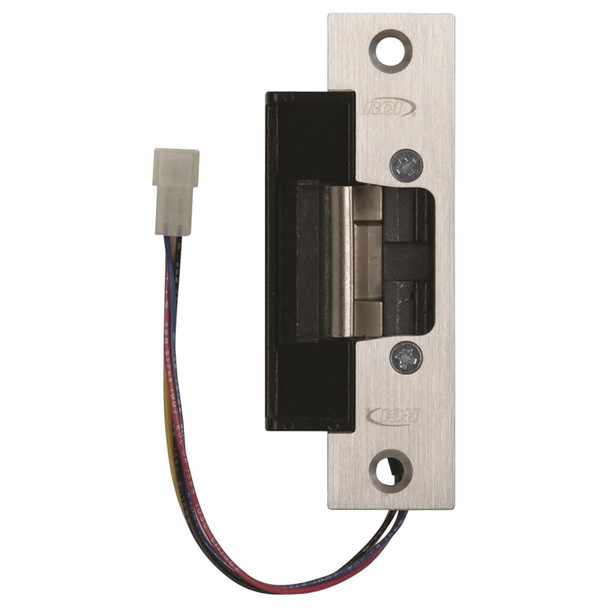

6 (S65/L65) Series Heavy Duty Electric Strikes
RCI's "all-in-one" 6 Series electric strike combines several requested key features. Standard features include a multi-voltage single solenoid, selectable lock mode (no tools necessary), horizontal adjustment, and plug-in wire connectors. An optional monitor switch is also available.
The L65 Low Profile version accepts 1/2" or 5/8" latch projection (perfect for narrow stile aluminum frames). The S65 Standard version is ideal when you require 3/4" latch projection.
Not only will installations be faster and easier, distributors and installers can cut their strike inventory significantly, because one strike does it all!
STANDARD FEATURES
- Field selectable lock mode - choose fail locked or fail unlocked with the turn of a dial (Fail unlocked mode requires DC voltage)
- Field selectable voltage input - accommodates 12 or 24VDC and 12 to 24VAC (even 16VAC) in one strike
- UL Listed for 1500 lbs static strength
- 1/4" Horizontal Adjustment
- Modular "plug-in" wire connectors for fast hook-up
- Modular faceplate designs for a variety of frame types and cut outs
- 1-3/16" (S), 1-1/16" (L) frame depth
- Universal model includes 3 faceplates (04/14/08) L65U / S65U
- Stainless steel faceplate
- Non-Handed
- Trim Plate Included
| Model | Mode | Current | Duty | Sound | Amps* |
| S6500/L6500 | Field Selectable FL / FUL | Field Selectable 12VDC | Continuous | Silent | 0.375 |
| S6500/L6500 | Field Selectable FL / FUL | Field Selectable 24VDC | Continuous | Silent | 0.190 |
| S6500/L6500 | Field Selectable FL / FUL | Field Selectable 12 to 24VAC | Intermittent | Buzz | .280 - .565 |
Fail Locked = Fail Secure = FL
Fail Unlocked = Fail Safe = FUL
AC = Alternating Current Intermittent Duty
DC = Direct Current Continuous Duty
Intermittent Duty = Energized less than 1 min. with Duty Ratio 1:5
Continuous Duty = Energized 1 min. or more
*Ratings are based on maximum current draw at +10°C and include initial power-up current draw. †Nominal resistance at +25°C ± 7% tolerance.
LMKM - The Latch Monitor is a SPDT switch with a trigger located in the strike cavity to indicate the presence of a latch bolt when the door is closed. The Keeper Monitor is a SPDT switch that will indicate when the keeper moves from the closed (normal) position to the open position.
NOTE: LMKM Switches are rated at 2 Amps @ 24VDC
Certification:
UL 1034 burglary resistant Listed
UL Listed for 1500 lbs static strength (Tested on 04, and 14 faceplates only)
