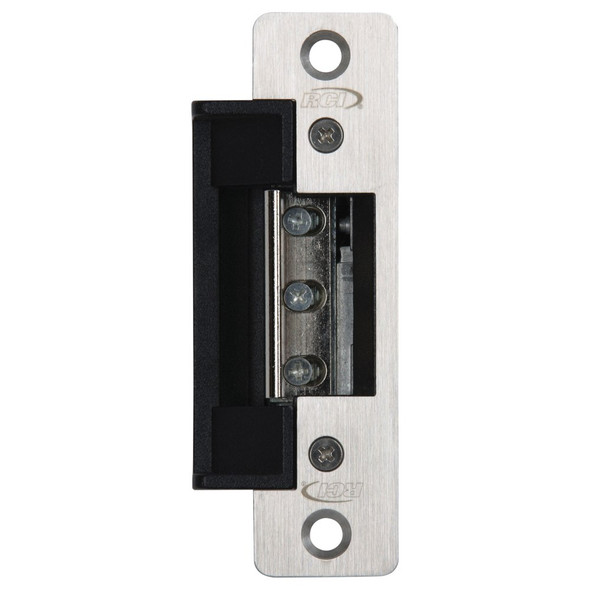

RCI's 7 Series electric strikes allow installers to adjust the strike pivot horizontally for precise alignment. Unique anti-vibration design prevents manipulation by vibration. Crossed wires are never a problem, as the coil is non polarity-conscious.
Applications:
- Commercial Centers
- Industrial Buildings
- Educational Facilities
- Retail Outlets
- Health Care Facilities
- Office Complexes
Standard Features
- Accommodates 5/8" latch projection (pullman design not included)
- 1/8" Horizontal adjustment
- Unique anti-vibration design prevents manipulation by vibration
- Enlarged latch cavity width allows compatibility with cylindrical, narrowline aluminum and centerline mortise locks (including 3-piece anti-friction type)
- 1-1/2" cut-out depth accommodates most aluminum and wood frames
- Use with wide range of door thicknesses (1-3/8" to 2-3/8")
- AC/DC input acceptable for fail locked models. Fail unlocked mode requires DC
- Non-Handed
- Standard mounting tabs, fasteners, and trim plate included
- Available in 32D Satin Stainless Steel
Warranty
- 3 Year Limited Warranty
Specifications
| Model | Mode | Voltage | Current | Duty | Sound | Amps* | Ohms** |
| 71XX-01 | Fail Locked | 11-16V | AC | Intermittent | Buzz | 0.35/0.55 | 22.5 |
| 71XX-05D | Fail Locked | 12V | DC | Continuous | Silent | 0.28 | 43 |
| 71XX-07 | Fail Locked | 24V | AC | Intermittent | Buzz | 0.50 | 41 |
| 71XX-08D | Fail Locked | 24V | DC | Continuous | Slient | 0.15 | 170 |
| 73XX-06 | Fail Unlocked | 12V | DC | Continuous | Silent | 0.24 | 51 |
| 73XX-09 | Fail Unlocked | 24V | DC | Continuous | Silent | 0.15 | 160 |
Fail Locked = Fail Secure = FL
Fail Unlocked = Fail Safe = FUL
AC = Alternating Current Intermittent Duty
DC = Direct Current Continuous Duty
Intermittent Duty = Energized less than 1 min.
Continuous Duty = Energized 1 min. or more. Duty Ratio 1:5.
*Ratings are based on maximum current draw at +10°C and include initial power-up current draw.
**Nominal resistance at +25°C ± 7% tolerance.
NOTE:
XX = Faceplate Code. (114 for these model)
UL Listed to 500 lbs of Static Strength
