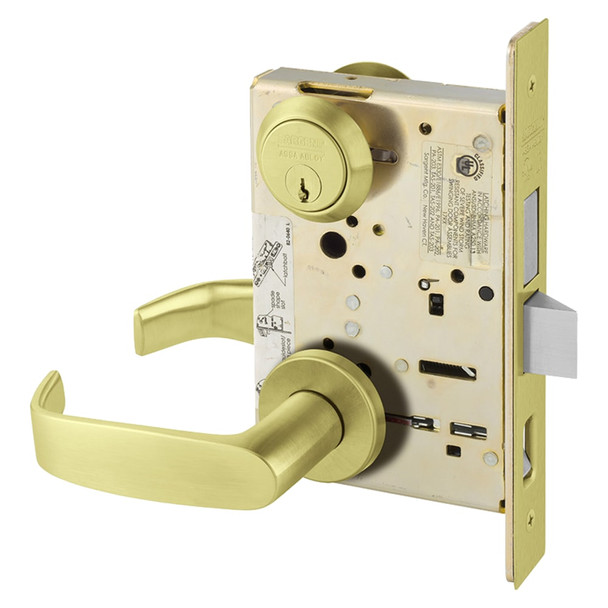

Sargent 8246 LNL 4 Grade 1 Mortise Lock

Grade 1 Dormitory or Exit Mortise Lock, L - Lever, LN - Rose, Field Reversible, Conventional Cylinder, ASA Strike, Satin Brass

MSRP: $1,580.00
$843.60
You save $736.40
SKU:
8246 LNL 4
In Stock & Ready To Ship!
Current Stock:Only left:

Description

8200 Line Lever Mortise Locks

Sargent 8200 Series Overview

Grade 1 Mortise Locks


Raising the bar of excellence.

The 8200 Series mortise lock is designed and constructed with the highest quality components to provide maximum security, performance, and durability, making it the strongest lock on the block. Considered the industry benchmark for all mortise locks on the market today, the robust lock is an attractive solution with a multitude of lever and escutcheon styles available.

With its innovative, multi-functional lock body, the 8200 Series Mortise Lock, is considered the industry benchmark for all mortise locks on the market today. It is also the strongest and most durable—far surpassing ANSI/BHMA A156.13 Series 1000 Grade 1 standards in independently verified testing—for additional resistance against vandalism and unauthorized entry.

The electromechanical version of the 8200 Series Mortise Lock operates from 12 to 24VDC and can be used in stand-alone applications or as part of an integrated access control system. Featuring EcoFlex technology, the electromechanical version dramatically reduces power consumption by up to 96%, as certified by GreenCircle.

Features

  • ANSI/BHMA Grade 1 certified for cycle and strength requirements
  • UL-cUL listed for 3 hour fire fdoors and windstorm applications
  • Thru-bolted lever trim and strengthened cylinder retainer
  • Available with security key systems (Degree, Signature, KESO, and XC)
  • Available in 58 different functions, including electromechanical, security (freewheeling, security escutcheon, anti-vandal pull trim) and monitoring
  • 6 lever designs, 2 roses/escutcheons designs, and 14 architectural finishes offered
  • Available with behavioral health trim
  • 10-year warranty
  • Patented design and construction

Benefits

  • Strength & Reliability: Far exceeds independently verified testing, making it the strongest and most durable mortise lock in the industry. Verified for over 14 million cycles.
  • Security: Several security features provide additional resistance against vandalism and unauthorized entry.
  • Flexibility & Aesthetics: Aesthetic design combined with a variety of functions, lever designs and architectural finishes match a wide range of styles and make it ideal for all types of applications (e.g. offices, hospitals, behavioral health environments, schools/universities).
  • Ease of Install and Maintenance: Multifunctional lockbody makes switching functions on-site easy and reduces inventory requirements.

Innovation

  • First in the industry to offer a multi-functional lockbody that embodies 8 functions in 1 lockbody
  • Easy operation. Only 30° of lever rotation required to retract latchbolt
  • Lever springs contained inside of the lock case for easier installation
  • SARGENT’s revolutionary MicroShield® available. This antimicrobial silver-based finish coating permanently suppresses the growth of bacteria, algae, fungus, mold and mildew. EPA and NSF approved and FDA listed
  • Broad offering of electro-mechanical configurations offer higher security for the most demanding access/egress control applications featuring ElectroLynx® quick connectors

Certification/Compliance

ANSI/BHMA Certified to ANSI/BHMA A156.13 Series 1000 Operational Grade 1 and Security Grade 1 with all standard trims.ANSI/ASTM F476-84 Grade 40 with concealed mortise cylinder. Note: LFIC (Removable) Cylinders and SFIC Cylinders do not meet Security Grade 1 requirements.
ADA Meets A117.1 Accessibility Code. Meets BOMA International 4.13.8 Complies with American Disability Act; Consult local authorities
UL-cUL UL and cUL Listed to US and Canadian safety standards for A label 4 x 10 single and 8 x 10 double (3 hour fire door) and lesser class doors, stamped letter F and UL symbol on armored front indicate listing.
Positive Pressure Meets ANSI/UL 10C, Positive Pressure Fire Test of Door Assemblies
California California State Reference Code (Formerly Title 19, California State Fire Marshal Standard). All levers with returns comply; levers return to within 1/2" (13mm) of door face.

Windstorm Certifications

SARGENT Manufacturing’s products meet building codes that require hurricane, windstorm and FEMA certifications, including some of the most stringent building codes as specified in the Florida Building Code, Miami Dade Code and the International Building Code.

Florida Building Code: FL2998 — UL Certification Directory: ZHEM.R21744 – Latching Hardware
ANSI/SDI-BHMA A250.13 Testing and Rating of Severe Windstorm Resistant Components for Swinging Door Assemblies
ANSI/ASTM E330 Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference
ANSI/ASTM E1886 Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials
ASTM E1996 Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems Impacted by Windborne Debris in Hurricanes
(TAS) 201 Impact Test Procedures — Published in the "Florida Building Code"
(TAS) 202 Criteria for Testing Impact and Non-Impact Resistant Building Envelope Components Using Uniform Static Air Pressure
(TAS) 203 Criteria for Testing Products Subject to Cyclic Wind Pressure Loading — Published in the "Florida Building Code"

UL Certification Directory: ZHLL.R21744 – Products for Use in Windstorm-rated Assemblies

Certifications to meet assembly requirements are done in conjunction with doors from ASSA ABLOY Group companies CECO DOOR and CURRIES.

ASTM E330 Standard Test Method for Structural Performance of Exterior Windows, Doors, Skylights and Curtain Walls by Uniform Static Air Pressure Difference
ANSI/ASTM E1886 Standard Test Method for Performance of Exterior Windows, Curtain Walls, Doors, and Impact Protective Systems Impacted by Missile(s) and Exposed to Cyclic Pressure Differentials
ASTM E1996 Standard Specification for Performance of Exterior Windows, Curtain Walls, Doors and Impact Protective Systems Impacted by Windborne Debris in Hurricanes
AAMA/WDMA/CSA 101/I.S.2/A440 Standard/Specification for Windows, Doors, and Unit Skylights
FEMA Publication 320 Taking Shelter From the Storm: Building a Safe Room for Your Home or Small Business”, investigated with respect to impact and pressure requirements only.
FEMA Publication 361 Design and Construction Guidance for Community Safe Rooms”, investigated with respect to impact and pressure requirements only.
ICC 500 ICC/NSSA Standard for the Design and Construction of Storm Shelters”, investigated with respect to impact and pressure testing. Minimum missile impact speeds vary with the design wind speed desired for a particular product. Table 305.1.1 of ICC 500 correlates design wind speed to the minimum missile speeds.
