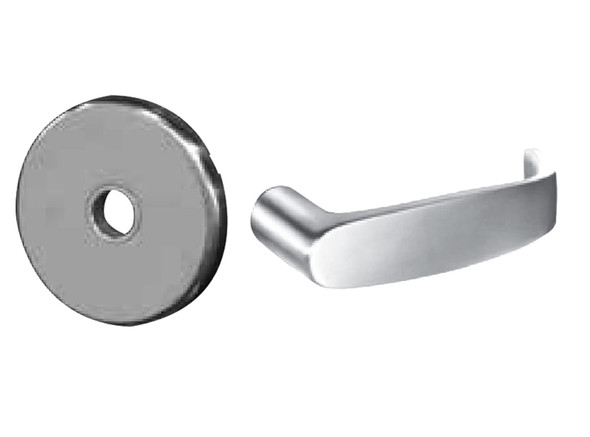

Sargent RXLC-8271-12V LW1J 26D Electrified Lever Mortise Lock

Grade 1 Fail Secure 12V Electric Mortise Lock, J - Lever, LW1 - Escutcheon, Less Cylinder, RX Switch, Satin Chromium Plated

MSRP: $1,945.00
$1,096.90
You save $848.10
SKU:
RXLC-8271-12V LW1J 26D
In Stock & Ready To Ship!
Current Stock:Only left:

Description

8270 Series Electrified Lever Mortise Locks

Designed and constructed with high quality components to provide maximum security.

 The Sargent electrified 8270 series locks represent over a century of innovation and experience in manufacturing hardware and are the industry’s benchmark for mortise locks: Strong - Durable - Flexible – Innovative and Secure.

  • For Doors 1-3⁄4" (44mm) thick standard. For doors over 1-3⁄4" (44mm), specify door thickness and panels (if any)
  • Backset 2-3⁄4" (70mm) only
  • Case 12 gauge heavy duty wrought steel, zinc dichromate plated. Thickness 7/64" (3mm) (.109")
  • Outside Front Plate Brass, bronze or stainless steel. 8" (203mm) x 1-1⁄4" (31mm), ANSI Standard A115.1. Adjustable at any angle from flat to beveled 1⁄8" (3mm) in 2" (51mm)
  • Springs High carbon steel
  • Hubs for Knobs Sintered iron copper infiltrated
  • Hubs for Levers Cold forged steel
  • Hubs for Institutional Stainless steel (3- prefix)
  • Latchbolt Stainless steel 3⁄4" (19mm) projection one-piece, anti-friction reversible latch
  • Auxiliary Deadlatch Stainless steel, non-handed
  • Deadbolt One-piece hardened stainless steel, with 1" (25mm) projection
  • Hand Specify hand on order; easily field reversible (if no hand is specified RH will be provided)
  • Strike Brass, bronze or stainless steel; ANSI Standard A115.1; curved lip, non-handed (strike box optional)
  • Keys Two, nickel silver (control key or emergency key must be ordered when required)
  • Cylinder Brass, size #41 (1-1/8") standard (except for Freewheeling, size #46 (1-3/4")). Available with SARGENT Signature, V-10, XC and KESO Security Systems
  • Masterkeying Can be masterkeyed or grand masterkeyed. Construction keying available. LA standard keyway.
  • Finishes 3, 4, 9, 10, 10B, 10BL,15, 20D, 26, 26D, 32, 32D Special finishes are available. (Contact factory for details)
  • Classroom Security 38, 39, 40, 41 Functions (All mortise trim designs available except KE/LE 3 & 4 and PT trim or FE trim with 41 function)
  • Stile 4-1/2" (114mm) minimum stile for 7800/8200, 4-3/4" (121mm) minimum stile for electrical function locks
  • Door Prep ANSI A115.1 modified per template (see template for 7800/8200 lockbody & trim)
  • Warranty 10 year limited warranty, 2 year limited warranty on electrified locks
