Description

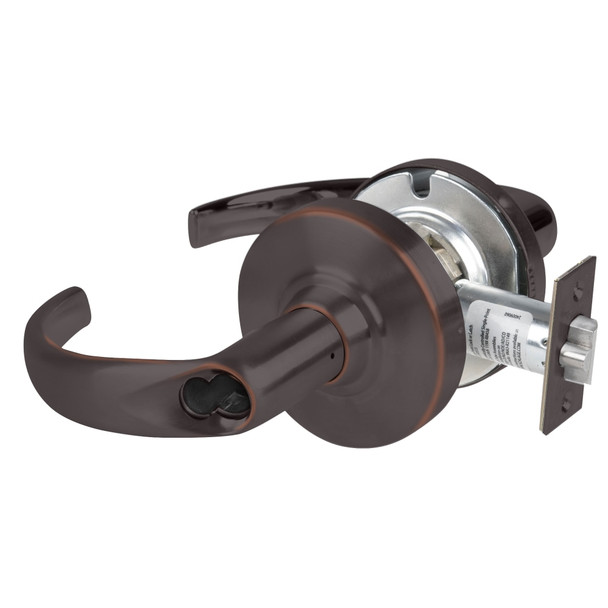

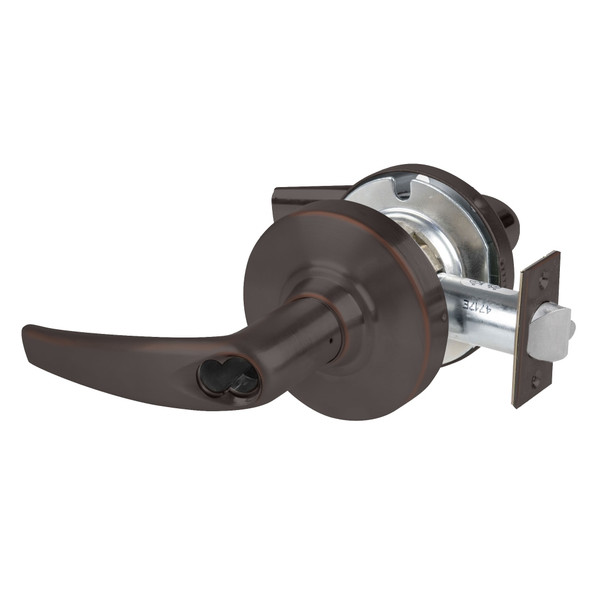

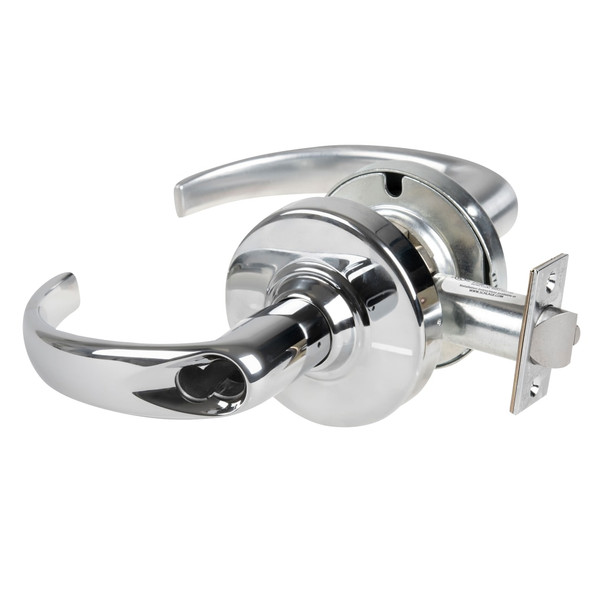

ND Series Lever Locks
Performance beyond Grade 1
The Schlage® ND family significantly exceeds BHMA Grade 1 requirements for cycle, lever torque, hammer blow, lever pull and other tests. This means confidence that the lock will last—whether the application calls for high abuse resistance or just operation over millions of cycles— without any degradation in performance.
Comprehensive offering for every opening
Mechanical, wired electrified and wireless electronic solutions allow a common aesthetic and consistent user experience throughout the building while lowering the total cost of ownership.
World-class design
A proven, easy to install product with extensive function, keying, trim and finish capabilities that work in nearly any applications.
ND Mechanical Overview
The Schlage ND is extremely versatile and is regularly used in healthcare, education, government, office, retail and other commercial applications. With 31 mechanical functions, the ND's range spans from the simple (non-locking passage) to complex (double-cylinder security) to specialized (school time-out lock). Because the ND uses an ANSI 161 door prep, commonly used across cylindrical locks, it is ideal for both new construction and retrofit applications.
- Significantly exceeds ANSI/BHMA A156.2 requirements for Grade 1 cylindrical locks
- 31 mechanical functions
- Nine lever designs, two rose designs
- 10 available finishes
- Supports standard, SFIC and FSIC cylinder formats
- Multiple key systems available – open, patented, restricted, geographic exclusive, UL437
- Support for 10 non-Schlage cores
Specifications
| ND Mechanical and ND Wired Electrified | ND Wireless Electronic | ||
| Chassis | Material | Modular design of zinc and steel components plated for corrosion protection | |
| Door thickness | Standard: 1-5/8" to 2-1/8" Optional: 1-3/8" - 6" EE, EO, EI, ED configurations |
Standard - 1-5/8" to 2" | |
| Levers | Standard: Nine designs, pressure cast zinc, plated to match product finish specification Optional: Tactile feature - Athens (ATH), Rhodes (RHO), Sparta (SPA), Tubular (TLR), LAT (Latitude), LON (Longitude), BRW (Broadway), BRK (Boardwalk) |
||
| Roses | Wrought brass, bronze, or zinc, plated to match product finish specification | Zinc, plated to match product finish specification | |
| Finishes | 10 available (605, 606, 612, 613, 619, 622, 625, 626, 626AM, 643e) | 9 available (605, 606, 612, 619, 622, 625, 626, 626AM, 643e)" | |
| Latches | Backset | Standard: 2 3⁄4" Optional: 2 3⁄8", 3 3⁄4", 7 3⁄4" |
Standard: 2 3⁄4" Optional: 2 3⁄8" |
| Faceplate | Standard : 1 1⁄8" x 2 1⁄4" Optional: 1" x 2 1⁄4" for 2 3⁄8" backset doors |
Standard: 1 1⁄8" x 2 1⁄4" | |
| Bolt | Standard : 1⁄2" throw via Oil Impregnated Stainless Steel Optional : 3⁄4" throw anti-friction bolt available for pairs of doors |
||
| Strike | Standard: ANSI Curved Lip: 1 1⁄4" x 4 7⁄8" x 1 3⁄16" Optional: T Strike, ANSI strikes with alternative lip lengths, dust box options |
||
| Keying | Formats | Standard: 3 Schlage (KIL or FSIC or SFIC) Optional: 10 Non-Schlage including cylinders from Best, Corbin Russwin, Medeco, Sargent and Yale |
|
| Access security | Standard : 6-Pin Patented Everest 29 Optional: Open, Restricted, Primus, master keying, construction keying |
||
| Warranty | Mechanical | 10 years mechanical, 1 year wired electrified | 1 year wireless electronic |
| Certifications | ANSI/BHMA | All ND Series comply with A156.2 performance requirements for grade 1 cylindrical locks. Wired electrified complies with A156.25 (indoor), wireless electronic complies with A156.25 (indoor/outdoor) requirements for electrified locking devices. | |
| ICC | Complies with ICC A117.1 Accessible and Usable Buildings and Facilities | ||
| UL/cUL | All locks 3 hour A label single firedoor 4'0" x 10'0"; pair doors 3 hour firedoor 8'0" x 8'0" with 3⁄4" latch option; pair doors 90 minute fire 8'0" x 10'0" with 3⁄4" latch option. | ||
| CA Fire Code | All levers with a return to door of 1 ⁄2" (64 mm) or less comply (Rhodes, Sparta, Tubular, Omega, Longitude and Boardwalk) | ||
| FL Building Code | Complies with Florida Building Code (ASTM E330, E1886, E1996) and Miami Dade (TAS 201, 202, 203) requirements for hurricanes | ||
| Federal | Meets FF-H-106C Series 161 | — | |
| Other | — | UL294, CSA C22.2 No. 205-M1983, FCC Part 15, IC RSS-210, RoHS | |
