Description

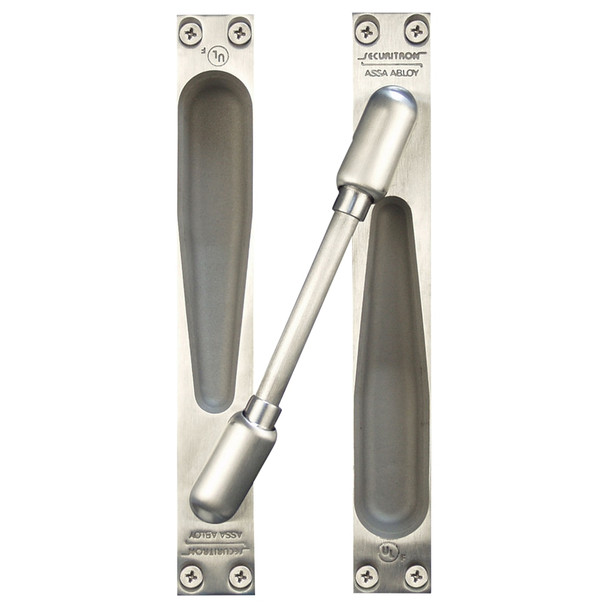

Securitron CEPT-10 Concealed Electrical Power Transfer
The Concealed Electrical Power Transfer CEPT unit is designed to provide a secure multiple wire power and/or data transfer between a door frame and door. The unit mounts directly between the frame and door along the hinged edge and is available in three multi-wire configurations. The CEPT is non-handed, allows mechanical (hinged) movement of the door and is totally concealed when the door is fully closed. This manual provides the information required to successfully install a CEPT to a standard hinged door opening.
Product Features
- Mortises into the edges of the door and frame
- Tamper resistant. No exposed openings prevents foreign objects from reaching the wires or jamming the device
- All metal construction including backboxes - no plastic
- 10 wire configuration includes 2-18 gauge wires for higher current devices
- Available with CAT-5E and ElectroLynx compatible connectors
- Four architectural finishes: US32, US04, US10 and US10B
- Installs above 2nd hinge
- 7/8" knockouts on back boxes accommodate EMF-type fittings
- Tested to 1,000,000 cycles
- Will only function with butt hinges - up to 6"
- Will not work on center-hung or balanced doors
- Will work with Continuous Hinges - please check with Continuous Hinge Manufacturer as to their cutout availability and charge for this cutout
Specification Data
|
Hinge |
Door Angle Range |
|
</=5" Butt Hinge |
0-180 Degrees |
|
5-1/2" Butt Hinge |
0-130 Degrees |
|
6" Butt Hinge |
0-110 Degrees |
Securitron CEPT Installation Instructions
