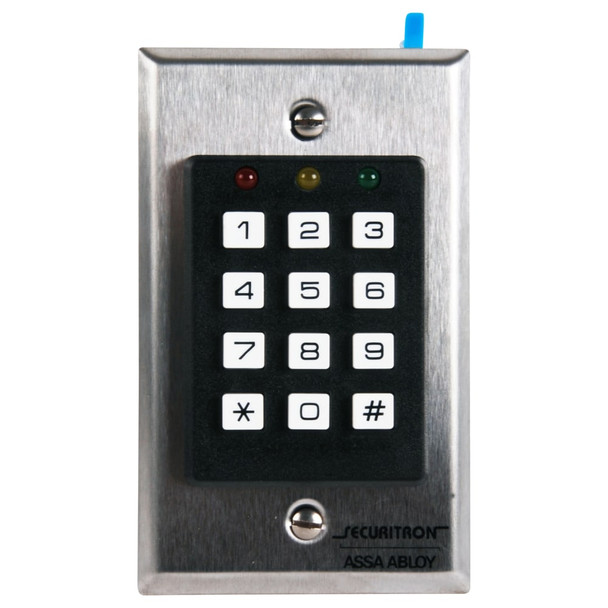

Securitron DK-16P Digital Keypad Replacement Only


MSRP: $273.00
$181.55
You save $91.45
SKU:
DK-16P
In Stock & Ready To Ship!
Current Stock:Only left:

Description


Securitron DK-16P Digital Keypad Replacement Only

Secure, Easy-to-Program Single Door Control System

The DK-16 digital keypad system provides medium/high security control of electric locks in a one- or two-door application where both doors have the same control needs. The tamper-resistant 3x4 keypad provides true 10-key operation for use and programming. Encased in a separate enclosure for secure installation in a protected area, the controller offers REX input and relay output for lock control, alarm shunt or other interfaces.

Product Features

  • 12 key 3x4 keypad with engraved and paint filled numbers
  • Stainless steel plate
  • Red, green and yellow LEDs for status and programming feedback
  • Audible keystroke echo
  • Controller mounted in plastic enclosure
  • 59 users
  • User code and/or hard code disable feature
  • 5A DPDT relay output
  • Request to exit (REX) input
  • True 10 digit operation (keys are not paired), 3 LEDs and a beeper
  • 16 ft. [4.8m], 12 conductor, 22 gauge keypad cable
  • MagnaCare® lifetime replacement, no fault warranty

Specification Data

Dimensions:

  • Keypad: 2-3/4"W x 4-1/2"H x 5/32"D
  • Enclosure: 6"W x 8"H x 3"D

Electrical:

  • 12 VAC/VDC: 7 mA at rest; 160 mA active
  • 24 VAC/VDC: 20 mA at rest; 190 mA active

Operating Temperature:

  • CPU: +32 to +158F [0 to +70C]
  • Keypad: +32 to +110F [0 to +43C]
  • Indoor use

Finishes:

  • US32D/630 – Satin Stainless Steel

pdficon.pngSecuritron DK-16 Architectural Specifications

pdficon.pngSecuritron DK-16 Installation and Operating Instructions
