Description

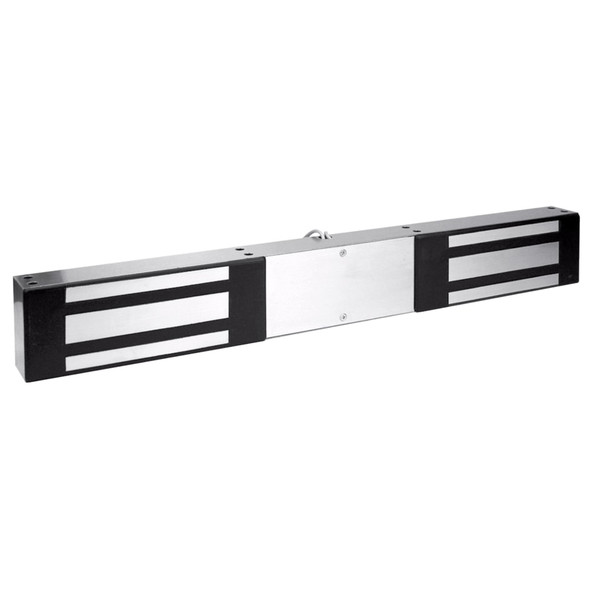

Securitron DM62B 1200 lbs. Holding Force Double Magnalock
- Maglock Model DM62 series, 1200lbs, 12/24vdc, MBS, Double Door Maglock.
- Bondstat.
For double doors without a center mullion, the DM62 supplies two model 62 Magnalocks in a single, brushed stainless steel housing.
Product Features
- Patented instant release circuit - no residual magnetism
- Both locks can be controlled as one or individually
- Surface mounts easily with minimal tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- Architectural brushed stainless steel finish (US32D/630)
- All ferrous metal surfaces plated to MIL specification
- Eighteen inches [45.7cm] of jacketed, stranded conductor for each lock
- Automatic dual voltage - no field adjustment required
- Lock options include BondSTAT magnetic bond sensor and integrated door position switch
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Holding Force: 1200 lbs. [544 kg] per lock
- Current Draw and Voltage: 250mA at 12VDC; 150mA at 24VDC per lock
- Operating Temperature: -40 to +140F [-40 to +60C]
- Shipping Weight: 16 lbs.
DM62 Series Specifications
