Description

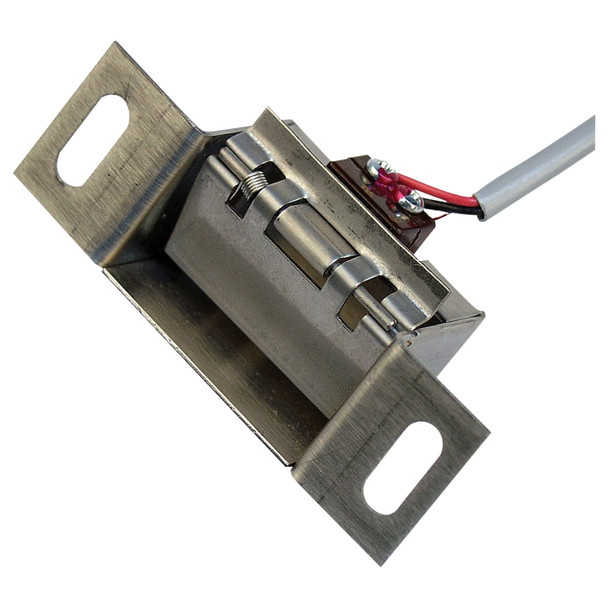

Securitron LMS-1 Latch Monitor
The LM Series is designed for reporting back to an alarm system to indicate that a door is latched, thereby reducing the possibility of false alarms. Can also be used to provide an initiate signal to model XDT delayed egress logic timers.
Product Features
- Electronically verify mechanical latch and bolt positions
- Detect and report that a door is actually latched or bolted, not just closed
- Installs easily concealed behind existing hardware
- Requires no jamb or strike plate modification
- LMS-1 includes a single SPDT switch and fits any standard 2-3/4" ANSI cutout
- LML-1 also has a single SPDT switch and fits any standard 4-7/8" ANSI cutout
- LML-2 monitors a mortise latch and deadbolt separately, has two separate SPDT switches, and fits any standard 4-7/8" ANSI cutout
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specification Data
- Contact Rating:SPDT 2 Amp at 24V
- Operating Temperature: -40 to +160F [-40 to +71C]
Models
| Part # | Description |
| LML-1 | Latch Monitor for ANSI, 4-7/8, Strike, SPDT, 3Amp |
| LML-2 | Latch Monitor for ANSI, 4-7/8, 2ea, SPDT, 3Amp |
| LMS-1 | Latch Monitor for ANSI, 2-3/4, Strike, SPDT, 3Amp |
Securitron LMS-1, LML-1, LML-2 Architectural Specifications
Securitron LMS-1, LML-1, LML-2 Installation & Operating Instructions
