Description

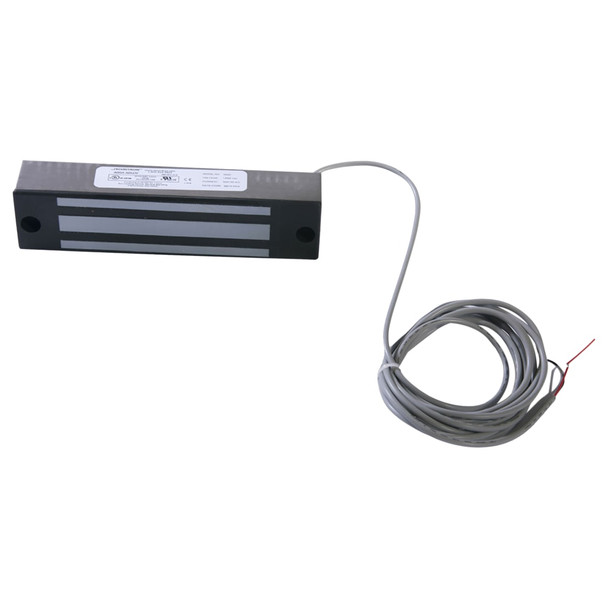

Securitron M32FB Holding Force Magnalock
- Model 32 Minimag 12/24vdc Face Drilled, MBS.
- 600 Lb Holding Force.
- Bondstat, Face Mount.
600 lbs. holding force Magnalock with automatic dual voltage. Recommended for applications where physical assault on the door is not expected, like access controlled interior rooms and secure areas within buildings.
Product Features
- Patented instant release circuit - no residual magnetism
- Surface mounts easily with a minimum of tools
- Fully sealed electronics - tamper proof and weatherproof
- Mounted using steel machine screws into blind finishing nuts
- All ferrous metal surfaces plated to MIL specification
- Ten feet [3.05m] of jacketed, stranded conductor
- UL Listed
- MagnaCare® lifetime replacement, no fault warranty
Specifications
- Holding Force: 600 lbs. [272 kg]
- Current Draw and Voltage: 300mA at 12VDC; 150mA at 24VDC
- Operating Temperature: -40 to +140F [-40 to +60C]
M32 Standard Mount Plate Template
